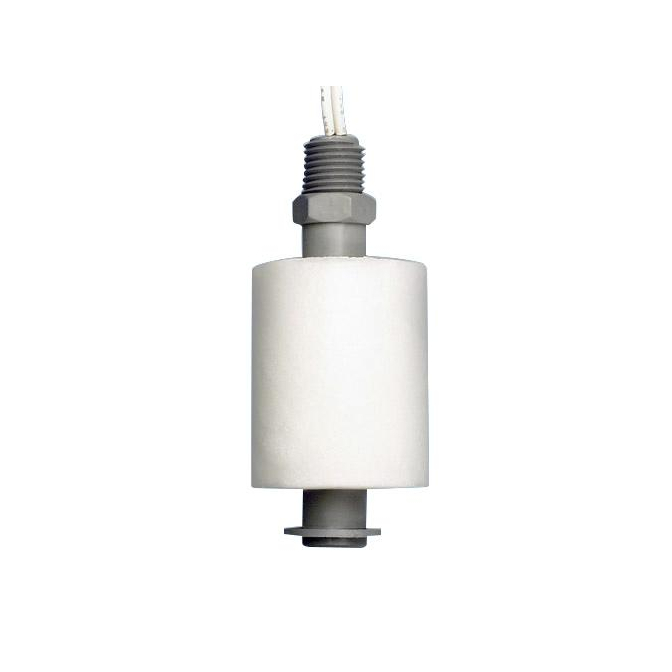

M8060-PR Float Switch
Reliable polypropylene/CPVC float switch, NC SPST, rated to 221 °F and 100 PSI, with high-power 100 W capability.
Durable polypropylene float with CPVC stem
High-capacity 100 W NC SPST switch
Rated 221 °F / 100 PSI; compact ¼″ NPT design
The M8060-PR Float Switch is engineered for reliable vertical single-point level detection in aggressive environments. It features a chemical-resistant polypropylene float and rugged CPVC stem coupled with a 100 W, normally-closed SPST switch for robust performance. Designed for water-based liquids and acidic washdown processes (FDA-compliant materials), it withstands temperatures up to 221 °F and pressures up to 100 PSI. Equipped with solid CE approval and housed in a compact ¼″ NPT body, this switch offers precision, durability, and a proven track record. MadisonSensor recommends requesting a quote for the most accurate pricing and specifications and stands ready to support custom OEM solutions.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Polypropylene |
| Stem Material | CPVC |
| Switch Logic | Normally Closed |
| Switch Rating | 100 WATT SPST |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 1.5" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 25 Business Days |
| Warranty | 1 Year |
