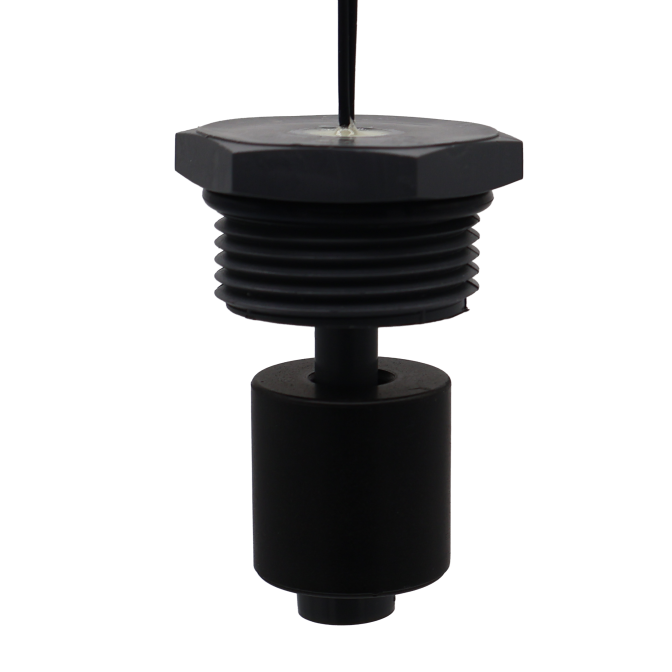

M6002-BN Single Level Liquid Level Switch
$79.00
SKU:
M6002-BN
Lead Time20 Business Days
Miniature Single Level Liquid Level Switch, Buna N Float, PVC Stem, 1-5/16"-12 Bulkhead Fitting
Miniature Single Level Liquid Level Switch, Buna N Float, PVC Stem, 1-5/16"-12 Bulkhead Fitting
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1 5/16-12 UN 2A |
| Float Material | Buna-N |
| Stem Material | PVC |
| Switch Logic | Normally Open |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240 VAC, 0.14A; 120 VAC, 0.28A; 120 VDC, 0.07A; 24 VDC, 0.28A |
| Temperature (Max-Celsius) | 65 |
| Temperature (Max-Fahrenheit) | 149 |
| Maximum Pressure (BAR) | 2 |
| Maximum Pressure (PSI) | 30 |
| Minimum Media SG | 0.45 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 20 Business Days |
