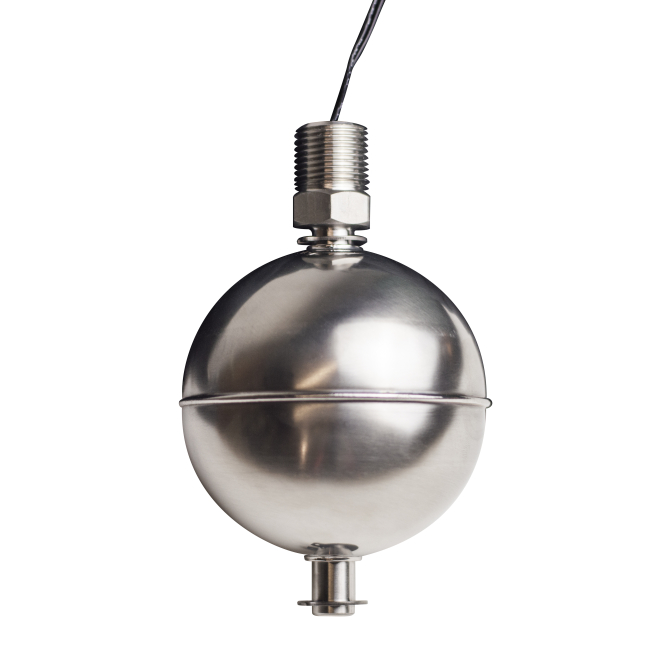

M5602-13331 Liquid Level Switch
High-buoyancy 316 SS float switch, SPST NC, 392 °F/300 PSI rated, with fast one-day lead time.
High-buoyancy 3.5″ stainless float
Rugged 316 SS construction, vertical mount
SPST, high-capacity 100 W switch rated to 392 °F/300 PSI
The M5602-13331 Liquid Level Switch is a heavy-duty, high-buoyancy float sensor designed for harsh environments with thick or viscous fluids. Featuring a large 3.5″ stainless-steel float and stem paired with a normally-closed 100 W SPST switch, it delivers reliable level detection under demanding conditions. With fast 1-day delivery, CE approval, and robust performance up to 392 °F and 300 PSI, MadisonSensor recommends requesting a quote for precise pricing and specifications—and can provide custom solutions tailored to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 100 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 1.0A; 120V DC, 0.40A; 24V DC, 1.0A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.43 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 3.5” |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
