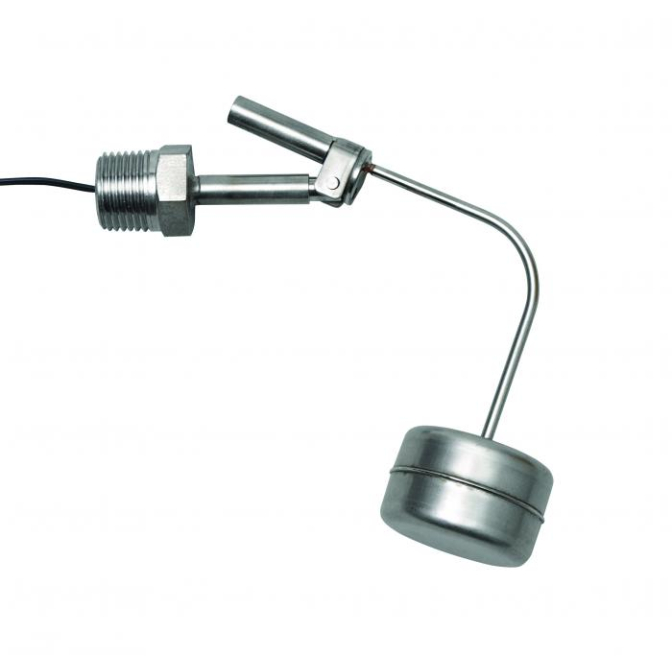

M3827-2NO Single Point Level Switch (Normally Open)
$208.00
SKU:
M3827-2NO
Lead Time1 Business Day
Durable 316 SS side-mount float switch providing reliable, fail-safe level detection.
316 SS resists corrosion under harsh conditions
Horizontal float for flexible side mounting
Normally open design for fail-safe operation
The M3827-2NO Single Point Level Switch offers reliable, side-mounted liquid level detection in demanding industrial environments such as petrochemical, HVAC, and food processing systems. Its full-body 316 stainless steel construction and NSF/ANSI/CAN 372 certification ensure robust performance and sanitary compliance. MadisonSensor invites you to request a quote to confirm pricing and specifications and provides custom-engineered solutions tailored to your specific application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 4 |
| Maximum Pressure (PSI) | 50 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24", 22 AWG, Teflon Insulated |
| Float Diameter | 1.54" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
