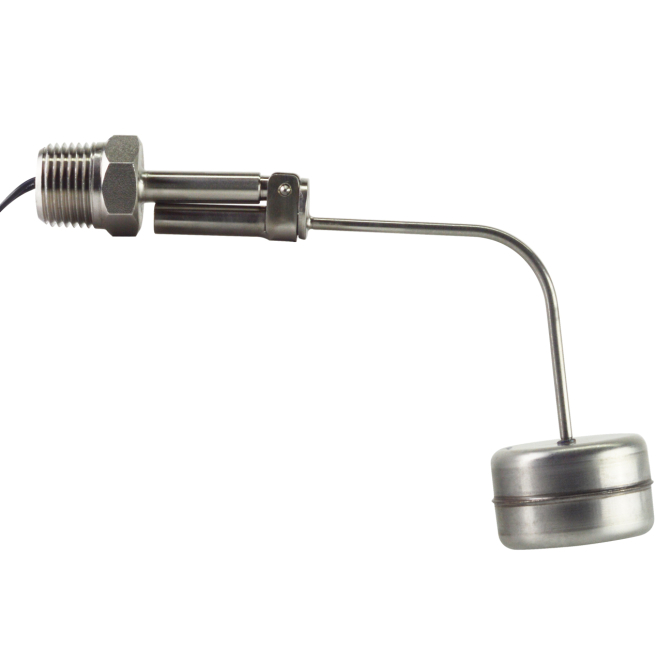

M3827-2 Single Point Level Switch (Normally Closed)
$216.17
SKU:
M3827-2
Lead Time1 Business Day
Durable 316 SS float switch for high-temperature, horizontal level detection.
- 316 SS resists corrosion under harsh conditions
Compact horizontal float for versatile mounting
High-temp and durable design for reliable control
- Buy 10 for $205.36 each and save 5%
- Buy 25 for $194.55 each and save 10%
- Buy 100 for $183.74 each and save 15%
The M3827-2 Single Point Level Switch is expertly designed for horizontal, high-temperature liquid level detection in demanding industrial environments like petrochemical, HVAC, and food & beverage systems. Crafted entirely from rugged 316 stainless steel and approved to NSF/ANSI/CAN 372 standards, it offers exceptional longevity and safety. MadisonSensor encourages requesting a quote to confirm pricing and specifications, and can provide custom-engineered solutions tailored to your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 4 |
| Maximum Pressure (PSI) | 50 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24", 22 AWG, Teflon Insulated |
| Float Diameter | 1.54" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
