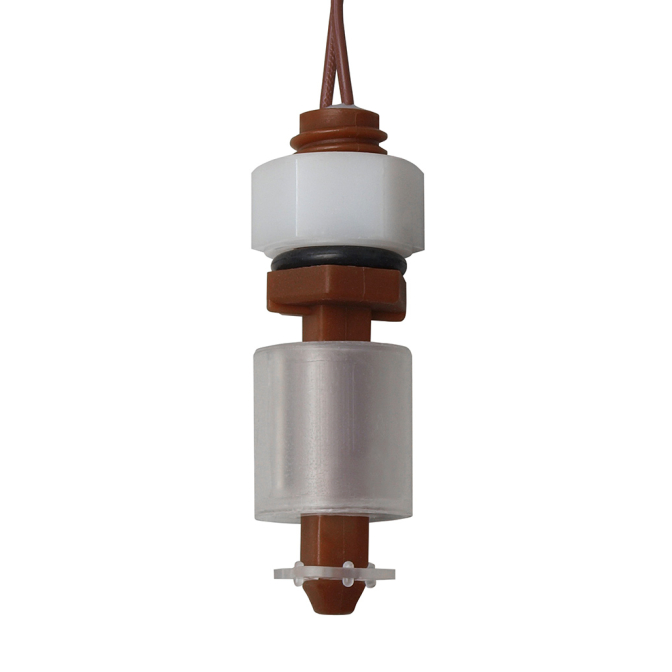

M3326 Single Point Level Switch (Normally Closed)
$42.00
SKU:
M3326
Lead Time1 Business Day
Durable polypropylene float switch for accurate vertical level control in demanding industrial applications.
- Reliable, robust polypropylene construction
- Versatile vertical single-point monitoring
- Compact, quick-lead industrial float switch
The M3326 Single Point Level Switch is engineered for precise, reliable liquid level control in industrial environments, suitable for applications like HVAC, food processing, and chemical tanks. Built with FDA-approved polypropylene and certified to CE, cULus, and NSF standards, it offers trustworthy performance under demanding conditions. MadisonSensor encourages requesting a quote for validated pricing and specifications, and is ready to provide custom solutions tailored to unique application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 3/8-16 UNC |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 15 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 4 |
| Maximum Pressure (PSI) | 50 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Float Diameter | 0.59" |
| Slosh Shield | No |
| Approvals | CE, cULus E54633, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
