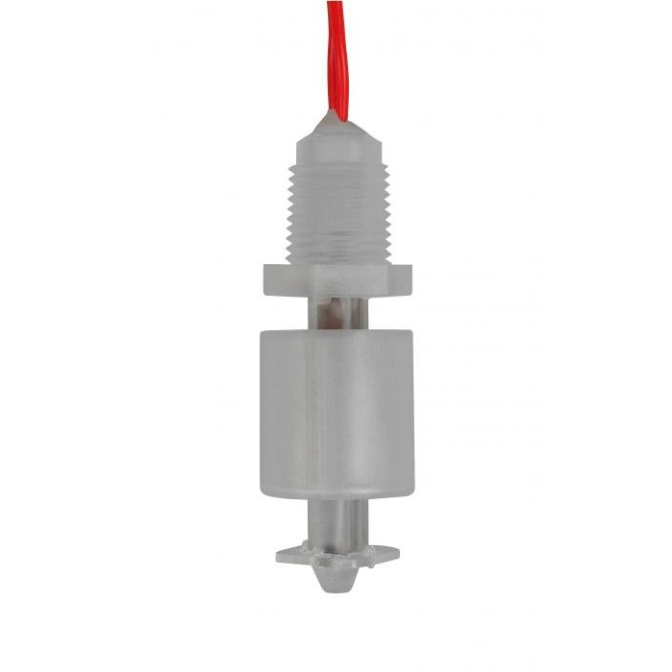

M3326-NPT-NO Subminiature Float Switch (Normally Open)
$47.00
SKU:
M3326-NPT-NO
Lead Time5 Business Days
Compact, chemical-resistant float switch for reliable normally-open level monitoring.
- Compact 1/8″ NPT subminiature design
Polypropylene resists harsh fluids
Fail-safe normally open float switch
The M3326-NPT-NO Subminiature Float Switch offers dependable, compact liquid level detection in industrial environments ranging from food processing to chemical and HVAC systems. Crafted with durable polypropylene and certified with CE and cULus approvals, it ensures robust performance in demanding conditions. MadisonSensor encourages customers to request a quote to confirm pricing and specifications, and is fully equipped to deliver custom-engineered solutions tailored to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open |
| Switch Rating | 15 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 4 |
| Maximum Pressure (PSI) | 50 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Float Diameter | 0.59" |
| Slosh Shield | No |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
