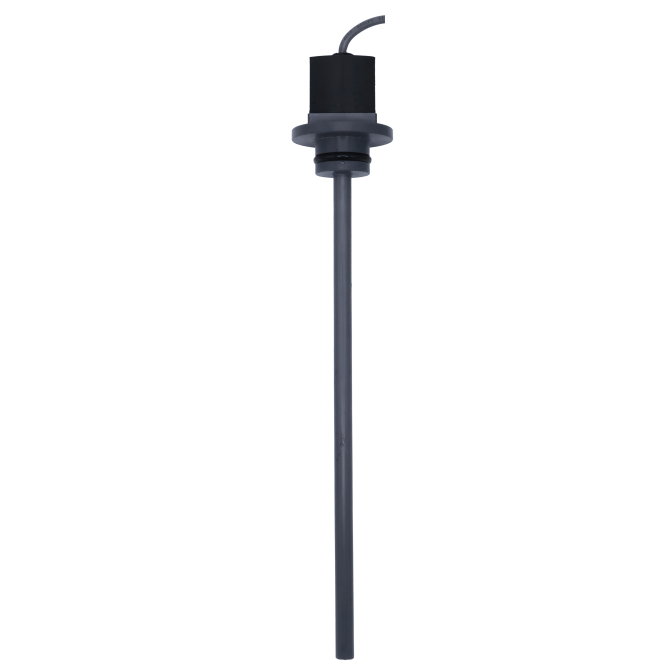

HS3500 Hydrostatic Level Sensor

calcActive())">
$0.00
SKU:
HS3500
Lead Time30 Business Days
MadisonSensor’s new tube level sensor technologies are ideal for vented tanks or small vessels from a few inches to several feet. This technology allows for minimal liquid intrusion with no moving parts. With its small size, additional tubes can be incorporated alongside to draw or fill liquids while providing a continuous measurement. Ideal for small medical tanks where highly accurate continuous level sensing is required. OEM designs can incorporate different output types and conditioning with 2mm accuracy
| Orientation | Vertical |
|---|---|
| Stem Material | PVC |
| Input Voltage | 3.5 Vdc - 12 Vdc, 24 Vdc |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Slosh Shield | No |
| Lead Time | 30 Business Days |
