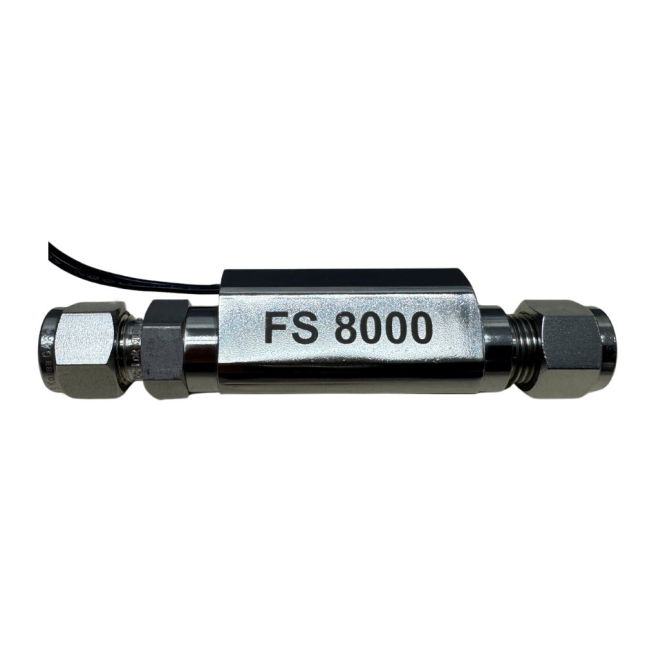

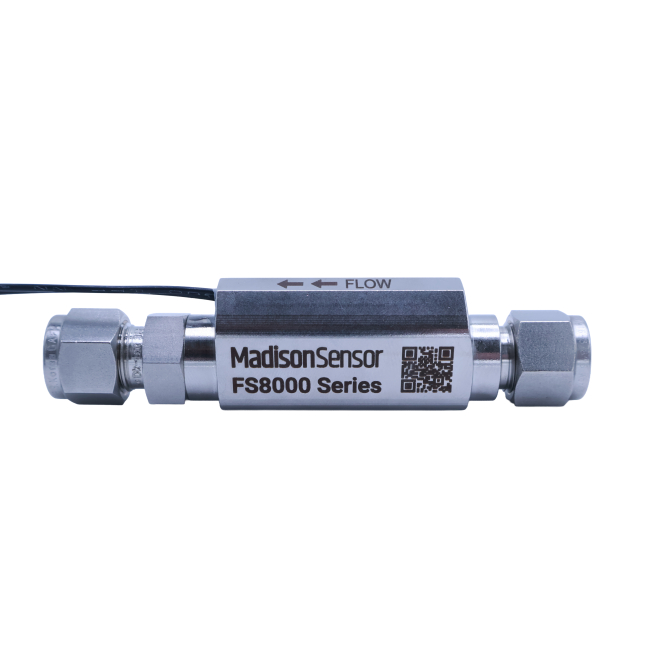

FS8000-20003 Stainless Steel Compression 0.25 GPM Flow Switch
Durable 316 SS compression flow switch with clog-resistant piston and precise 0.25 GPM detection.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression housing
Precise 0.25 GPM detection (±10%)
- Buy 10 for $329.65 each and save 5%
- Buy 25 for $312.30 each and save 10%
- Buy 100 for $294.95 each and save 15%
The FS8000-20003 Stainless Steel Compression Flow Switch delivers accurate 0.25 GPM flow detection in demanding high-pressure systems. Built with a clog-resistant Ryton® R4 piston, Viton seals, and 316 stainless steel compression housing, it withstands up to 1,500 PSI and operates from –20 °F to 275 °F. Its SPST switch logic, global approvals (CE, cULus), and compact design make it ideal for OEM equipment, chemical dosing, and cooling applications. MadisonSensor prefers quote requests to validate pricing and specification details and offers custom configurations tailored to your operational needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 0.25 |
| Flow Setting (LPM) | 0.95 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
