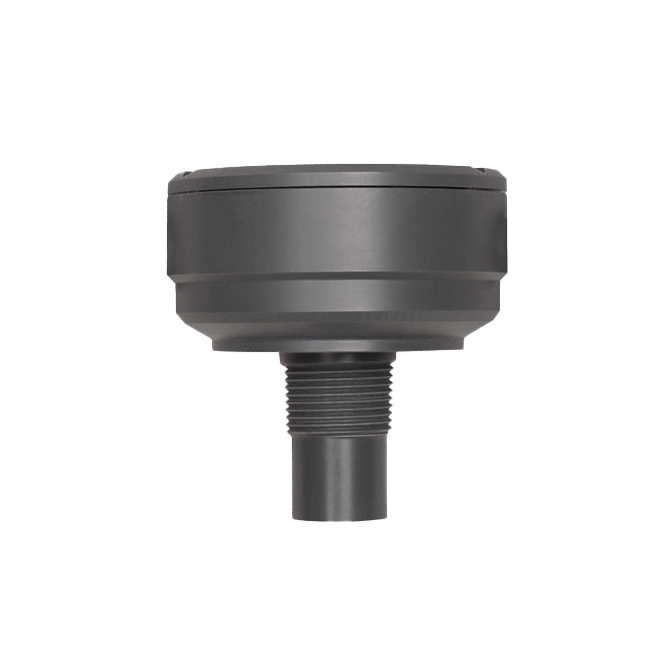

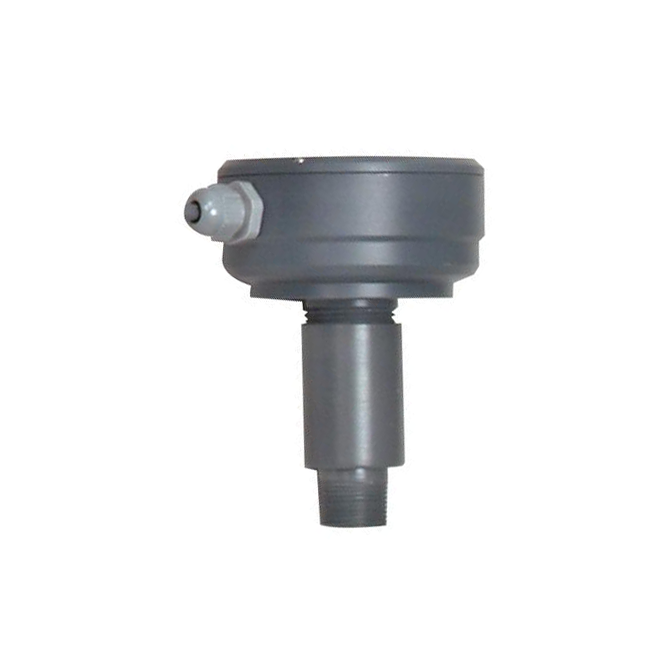

U3M-148-3/4 Ultrasonic Level (3/4" NPT)
Compact ultrasonic mini-probe with ¾″ NPT mount, 4–20 mA output, push-button calibration, and self-cleaning design—ideal for small tank level sensing.
Compact ultrasonic “mini probe” with ¾″ NPT mount—0.03″ resolution for precise level control
Self-cleaning sensor face with push-button calibration—no software required
Durable PVC housing, temperature-compensated, rated up to 72.5 PSI with optional RS485 or relay outputs
- Buy 10 for $850.25 each and save 5%
- Buy 25 for $832.35 each and save 7%
- Buy 100 for $805.50 each and save 10%
The U3M-148-3/4 Ultrasonic Level Sensor is a micro-probe designed for non-contact continuous level measurement in compact or challenging environments like drums and remote tanks. It emits ultrasonic pulses from a self-cleaning PVC transducer mounted via ¾″ NPT and transmits a precise 4–20 mA output with 0.03″ resolution. Its microprocessor-enhanced design supports onboard, push-button calibration, temperature compensation, and echo filtering—ensuring accurate and reliable measurement even on cluttered or sticky surfaces. With rugged IP65 protection and options for RS485 or relay outputs, it integrates seamlessly into automation systems, offering flexibility and durability for food, chemical, fuel, and wastewater applications.
| Sensor Type | Ultrasonic |
|---|---|
| Mounting Type & Size | 3/4" NPT |
| Resolution | 0.03” / 0.7mm |
| Input Voltage | 12-30V DC, R load = (Vs-6)/24 mA |
| Electrical Ratings | 4-20mA |
| Temperature (Max-Celsius) | 60 |
| Temperature (Max-Fahrenheit) | 140 |
| Maximum Pressure (BAR) | 5 |
| Maximum Pressure (PSI) | 72.5 |
| Output (Linear) | 4-20 mA |
| Electrical Termination | 60”, 24 AWG, 3 pair; relay option requires 18 AWG, 3 conductor |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
