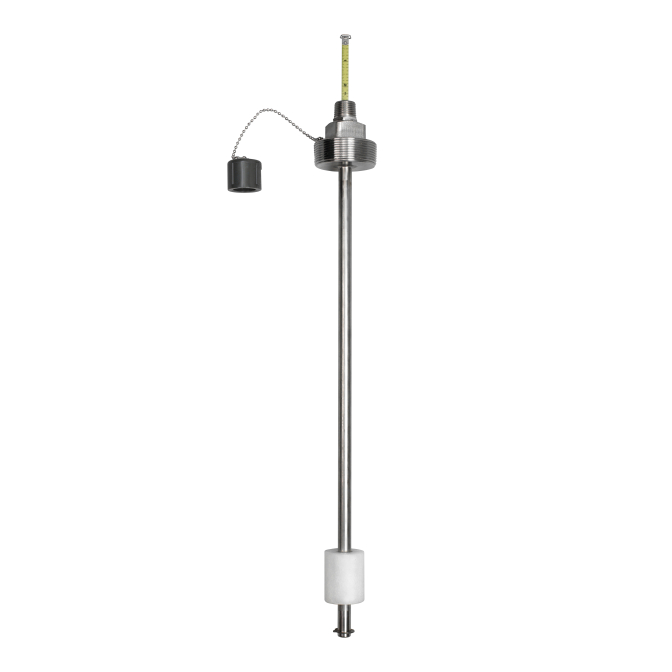

TL4570-10369 Visual Level Indicator (33")
Mechanical visual float level gauge (33")—power-free, polypropylene float with stainless-steel stem; rated to 221 °F/100 PSI in remote tanks.
Polypropylene float on a 316 stainless-steel stem, engineered for reliable visual indication
Power-free visual operation via simple 2" NPT mount—no wiring required
Built for rugged conditions: rated to 221 °F and 100 PSI, offering a long 30.75" visible range
The TL4570-10369 Visual Level Indicator provides accurate, mechanical liquid level monitoring in vertical tank applications. Featuring a polypropylene float on a sturdy 316 stainless-steel stem, this 33" indicator delivers a clear 30.75" visual reading through a 2" NPT connection—ideal for 55-gallon vertical tanks. With a rugged design rated for 221 °F / 105 °C and 100 PSI, and capable of operating in media with a specific gravity of 0.96, this power-free level gauge is CE- and NSF/ANSI/CAN 372-certified for dependable performance. It’s a practical, low-maintenance solution for remote, mobile, or non-powered systems. MadisonSensor recommends requesting a quote to confirm current specifications and explore customization options.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Polypropylene |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.96 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
