TL4570-10368 Visual Level Indicator (26.5")
Compact visual float level indicator (26.5") with durable polypropylene float and stainless-steel stem—rated for 221 °F/100 PSI, power-free.
Durable polypropylene float with 316 stainless steel stem for reliable visual monitoring
Fully mechanical and power-free operation—installs via 2" NPT
Designed for rugged conditions; rated for 221 °F and 100 PSI, with a 24.24" visible span
- Buy 10 for $361.00 each and save 5%
- Buy 25 for $342.00 each and save 10%
- Buy 50 for $323.00 each and save 15%

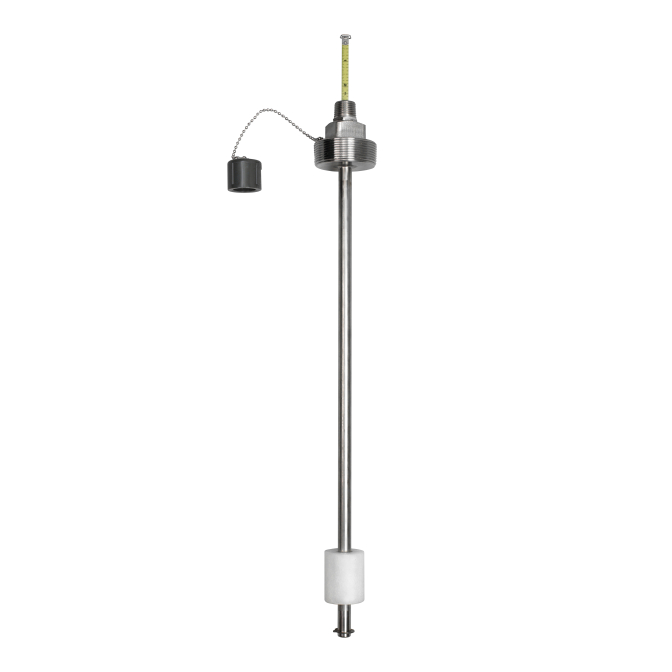

The TL4570-10368 Visual Level Indicator provides sturdy, power-independent visual-level measurement, featuring a polypropylene float that moves along a 316 stainless-steel stem. Designed for vertical tank applications (e.g., 30-gal tanks), it delivers a clear 24.24" visual level indication through a 2" NPT mount. Built to withstand demanding operating environments, it meets standards for 221 °F (105 °C), handles up to 100 PSI, and performs with liquids down to a specific gravity of 0.96. Ideal for mobile, remote, or power-limited situations, this CE-certified indicator offers dependable, maintenance-free performance. MadisonSensor recommends requesting a quote to confirm specifications and explore custom configurations tailored to your application.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Polypropylene |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.96 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
