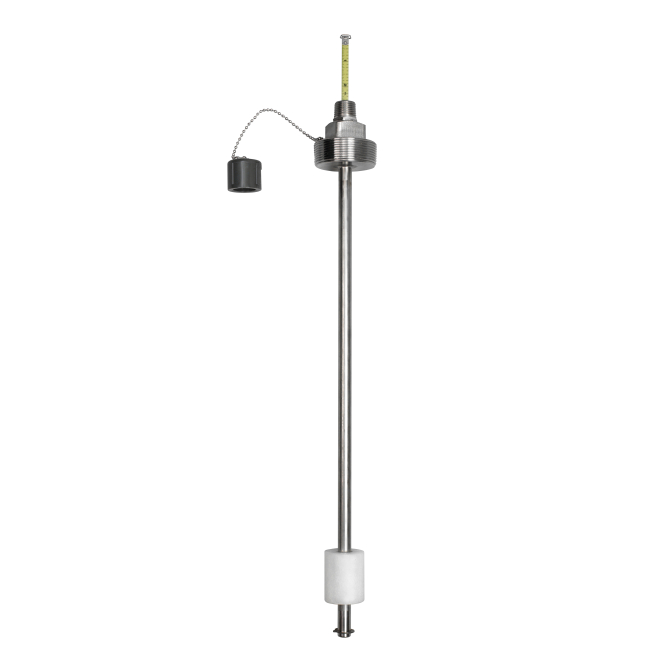

TL4570-10367 Visual Level Indicator (22")
Power-free visual float level indicator (22") with polypropylene float and stainless stem—rated to 221 °F/100 PSI, ideal for drum applications.
Mechanical visual float indicator with polypropylene float and 316 SS stem
Power-free operation; installs via 2" NPT—ideal for remote applications
Designed for rugged use: rated 221 °F / 105 °C and 100 PSI, with 19.75" visual range
The TL4570-10367 Visual Level Indicator offers reliable, power-independent liquid level monitoring. With a polypropylene float gliding on a 316 stainless-steel stem, it provides an accurate 19.75" visual level readout through a 2" NPT connection—perfect for horizontal 55-gallon drums. Crafted for tough conditions, it’s rated for temperatures up to 221 °F and pressures up to 100 PSI, and performs consistently with liquids down to 0.96 SG. CE-certified for global deployment, this robust, maintenance-free gauge is ideal for industrial, marine, and mobile fluid storage scenarios. MadisonSensor recommends requesting a quote to confirm current pricing and explore custom configurations tailored to your system.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Polypropylene |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.96 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
