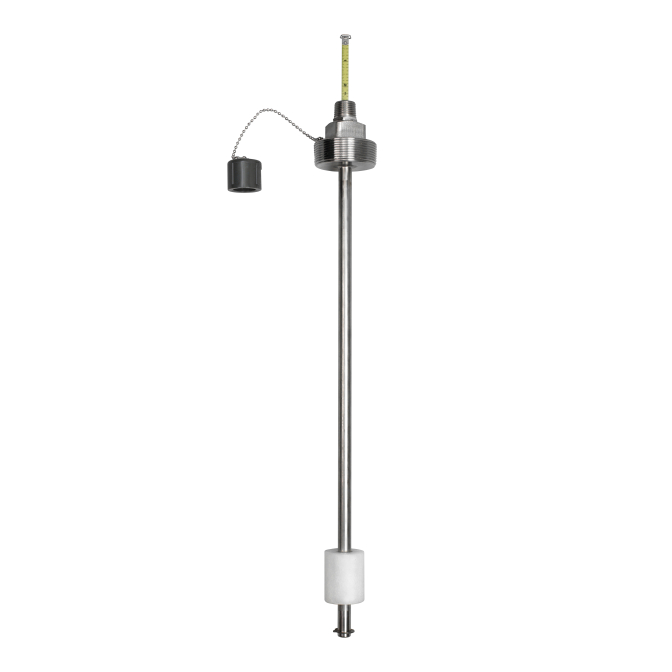

TL4570-10366 Visual Level Indicator (17.5")
$350.00
SKU:
TL4570-10366
Lead Time5 Business Days
Mechanical visual float indicator (17.5") with polypropylene float and 316 SS stem—rated for 221 °F/100 PSI, power-independent.
Fully mechanical visual float level indicator with polypropylene float and 316 SS stem
Installs via 2" NPT—no power needed, ideal for remote and mobile applications
Rated to 221 °F and 100 PSI, with a 15.25" visible range for accurate monitoring
- Buy 10 for $332.50 each and save 5%
- Buy 25 for $315.00 each and save 10%
- Buy 50 for $297.50 each and save 15%
The TL4570-10366 Visual Level Indicator provides reliable, power-free liquid level monitoring with a 17.5" design. Constructed with a polypropylene float on a durable 316 stainless-steel stem, it offers a clear 15.25" visual readout and mounts securely via a 2" NPT connection—perfect for horizontal tanks around 30 gallons. Designed to perform under demanding conditions, it operates at temperatures up to 221 °F, pressures up to 100 PSI, and handles fluids with a specific gravity as low as 0.96. CE- and NSF/ANSI/CAN 372-certified, this visual indicator offers dependable performance in environments without electrical access. MadisonSensor recommends requesting a quote to confirm the latest specs and to explore custom configurations for your specific needs.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Polypropylene |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.96 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
