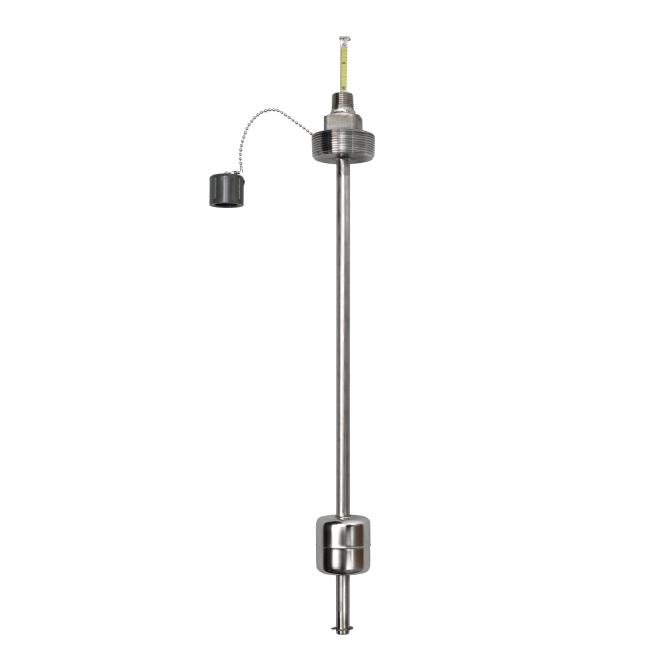

TL4570-10365 Visual Level Indicator (33")
Stainless steel visual float indicator—33" length with 30.5" readout, power-free, 392 °F/200 PSI rated for severe environments.
Precision 316 stainless steel float and stem—durable and corrosion-resistant
Fully mechanical, visual-only level indication with no power requirement
Built for extreme conditions: rated to 392 °F and 200 PSI, with a long 30.5" visual range
The TL4570-10365 Visual Level Indicator offers robust and intuitive liquid level monitoring, featuring a fully stainless-steel construction. Designed for vertical installation, the 33" assembly delivers a clear 30.5" visual reading through a 2" NPT connection, ideal for remote or mobile tanks. Engineered to endure demanding environments, it withstands temperatures up to 392 °F and pressures up to 200 PSI while accurately indicating levels in media down to 0.69 SG. CE-certified and crafted for rugged reliability, it’s a dependable solution where electrical power is unavailable. MadisonSensor recommends requesting a quote to confirm specifications and explore tailored solutions for your application needs.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.69 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
