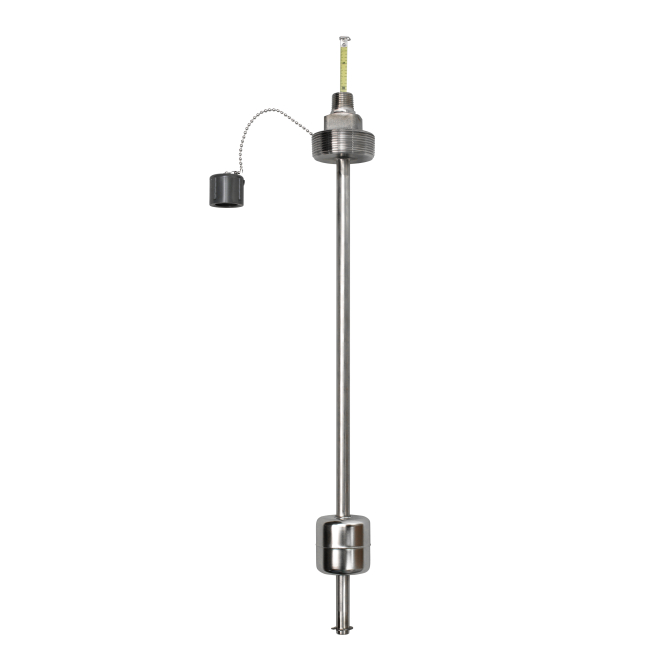

TL4570-10364 Visual Level Indicator (26.5")
316 stainless visual float level indicator with 24" readable span; power-free and rated for 392 °F/200 PSI.
Durable 316 stainless-steel float and stem offering visual level indicator
Power-free operation with easy 2" NPT installation
Built for rugged environments—rated for 392 °F and 200 PSI, with 24" visible range
The TL4570-10364 Visual Level Indicator provides a robust, power-free solution for liquid level monitoring in challenging environments. Constructed entirely from 316 stainless steel, the 26.5" unit delivers a clear 24" visual readout and installs simply via a 2" NPT connection. Rated for high temperatures up to 392 °F and pressures up to 200 PSI, and effective with fluids down to 0.69 specific gravity, this gauge is ideal for remote or mobile tank applications. CE-certified for global use, it’s a reliable and low-maintenance choice for OEM, fuel, or chemical handling solutions. MadisonSensor recommends requesting a quote to confirm specifications and explore custom configurations tailored to your needs.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.69 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
