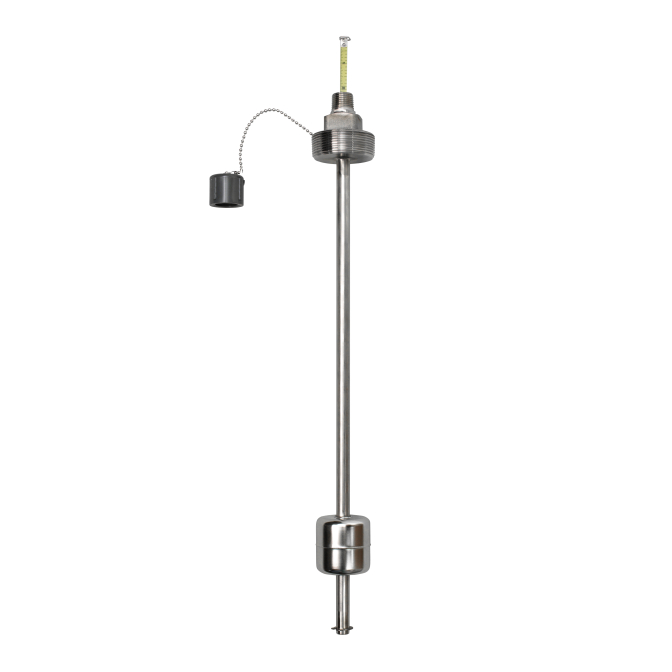

TL4570-10362 Visual Level Indicator (17.5")
17.5" visual-only float level gauge, stainless steel stem and float, rated to 392 °F/200 PSI—power independent and compact.
Durable 316 SS float and stem for reliable, visual-level monitoring
Installs via 2" NPT; no power required—ideal for remote or mobile tanks
Rated for 392 °F (200 °C) and 200 PSI; 15" visual range in a compact 17.5" body
The TL4570-10362 Visual Level Indicator offers rugged and power-free liquid level monitoring through a 2" NPT mounting. Featuring a fully stainless-steel construction, the 17.5" assembly delivers a clear 15" visual indication and withstands challenging environments with ratings up to 392 °F and 200 PSI. Engineered to perform with fluids as light as 0.69 SG, it’s CE certified and perfect for use in mobile equipment and remote storage solutions. MadisonSensor recommends requesting a quote to confirm the specifications and discuss tailored fitment for unique applications.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.69 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
