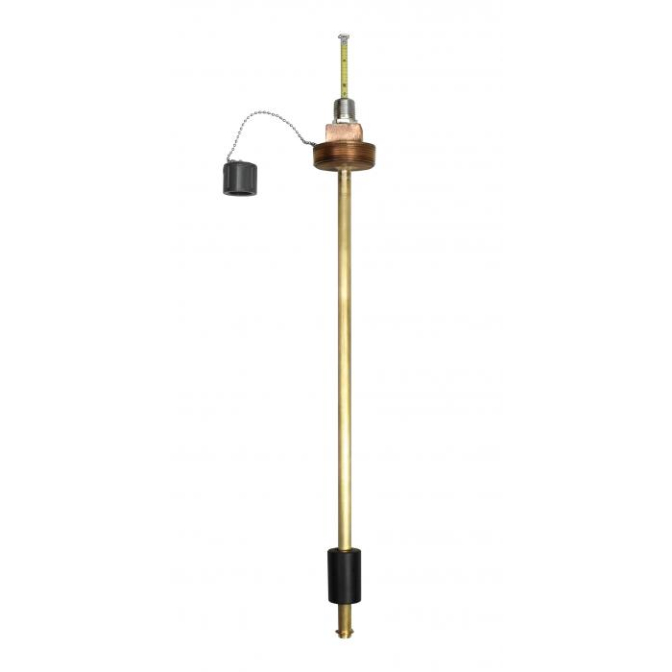

TL4569-10361 Visual Level Indicator (33")
33" visual float level indicator with Buna-N float and brass stem—power-free, rugged design rated for 221 °F/150 PSI.
Mechanical visual level indicator using a Buna-N float on a brass stem
2" NPT mounting with no power required—ideal for remote or mobile tanks
Designed for rugged use: 221 °F (105 °C) and 150 PSI rating with a 33" visual span
- Buy 10 for $311.60 each and save 5%
- Buy 25 for $295.20 each and save 10%
- Buy 50 for $278.80 each and save 15%
The TL4569-10361 Visual Level Indicator is a durable, mechanical solution for monitoring liquid levels without power. Equipped with a Buna-N float traveling along a burnished brass stem, it offers a clear, 33-inch visual readout through a 2" NPT connection—perfect for drums, totes, and mobile storage. Built to handle demanding conditions, it withstands temperatures up to 221 °F and pressures up to 150 PSI, and operates reliably with fluids down to a specific gravity of 0.56. CE-certified for international compliance, this simple yet dependable device is ideal for fuel tanks, hydraulic reservoirs, and applications in transportation or remote environments. MadisonSensor recommends requesting a quote to verify current pricing and explore custom configurations when needed.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
