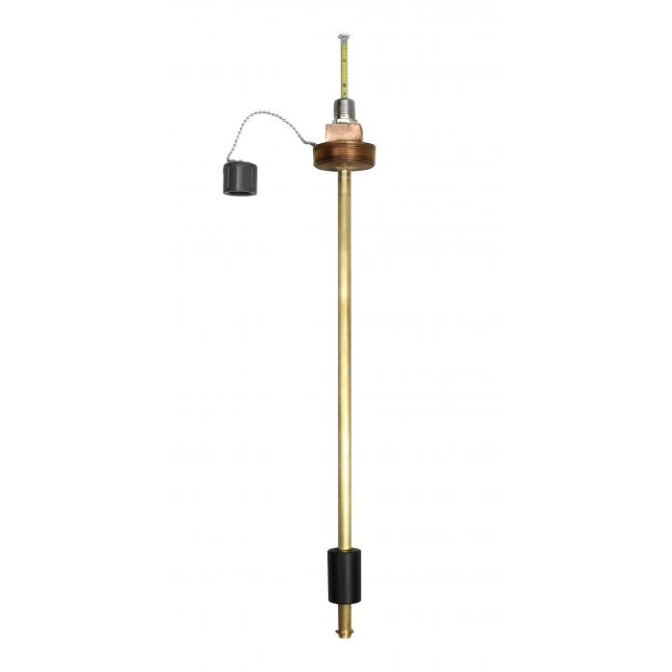

TL4569-10360 Visual Level Indicator (26.5")
Visual-only float level indicator (26.5") with Buna-N float and brass stem—stainless reading in rugged environments.
Mechanical visual float indicator with Buna-N float and brass stem
Sturdy 2" NPT installation—no power required, ideal for remote tanks
Rated for durable use: 221 °F and 150 PSI with clear visual readout
The TL4569-10360 Visual Level Indicator provides a reliable, power-free method for monitoring liquid levels in vertical storage setups. Featuring a Buna-N float traveling along a brass stem, it offers a clear 24.31" visual measurement through a 2" NPT connection. Built for demanding conditions, this indicator is rated for temperatures up to 221 °F, pressures up to 150 PSI, and operates with media having a specific gravity of 0.56 or greater. With CE certification and a robust mechanical design, it's especially well-suited for mobile, marine, and remote storage applications. MadisonSensor recommends requesting a quote to confirm up-to-date pricing and discuss custom configurations tailored to your system design.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
