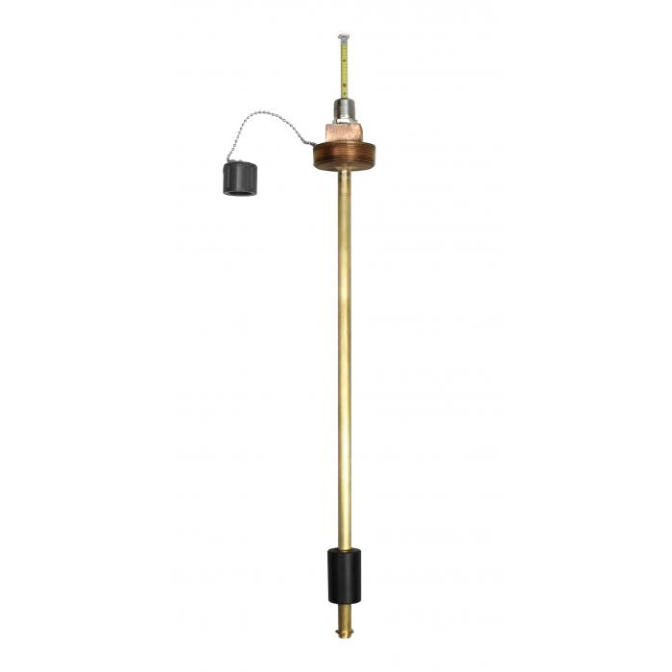

TL4569-10359 Visual Level Indicator (22")
Visual float level indicator (22") with brass stem, for power-free monitoring in high-temp, high-pressure conditions.
Hanging float indicator with Buna-N float and brass stem—clear visual monitoring
Secure 2" NPT install with no power required—ideal for remote or mobile tanks
Rated for 221 °F and 150 PSI, suitable for demanding environments
- Buy 10 for $283.10 each and save 5%
- Buy 25 for $268.20 each and save 10%
- Buy 50 for $253.30 each and save 15%
The TL4569-10359 Visual Level Indicator offers a reliable, power-free solution for monitoring fluid levels using a Buna-N float moving along a brass stem. Designed for horizontal installations like 55-gallon tanks, it delivers a clear 19.8" visual indication through its 22" assembly via a 2" NPT connection. Engineered to withstand harsh operating conditions—rated up to 221 °F and 150 PSI with a minimum specific gravity of 0.56—this indicator is CE-certified for global use. MadisonSensor encourages requesting a quote to verify current pricing or discuss custom configurations tailored to your system needs.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Electrical Ratings | N/A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Output (Linear) | Visual only |
| Electrical Termination | N/A |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
