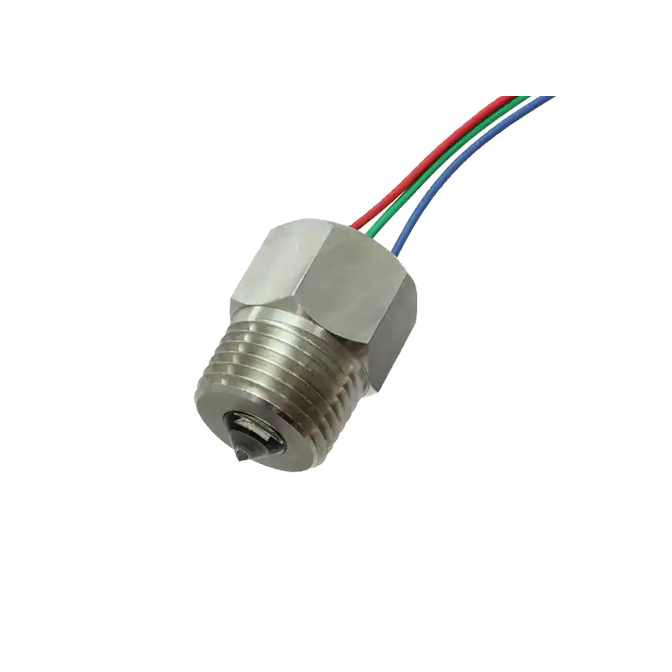

OPT5000-P2 Optical Level Sensor
Robust stainless-steel optical sensor with dry logic, rated for 5000 PSI and 257 °F.
316 Stainless Steel construction
½″ NPT optical housing
High-pressure rating (5000 PSI)
- Buy 10 for $343.90 each and save 5%
- Buy 25 for $325.80 each and save 10%
- Buy 100 for $307.70 each and save 15%
The OPT5000-P2 Optical Level Sensor is engineered for premium reliability in extreme environments. Featuring 316 stainless steel construction, a ½″ NPT interface, and dry optical current-sink output, it handles up to 5000 psi and 257 °F. Sealed with a 3 m IP67 cable, it ensures durability and long-term precision in industrial applications. Approved with CE certification and backed by a 1-year warranty, it ships in approximately 20 business days. MadisonSensor recommends requesting a quote to confirm pricing and specifications and offers tailored custom solutions for demanding use cases.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | 1/2" NPT |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Current Sink Dry |
| Electrical Ratings | Iout max = 800mA |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 345 |
| Maximum Pressure (PSI) | 5000 |
| Electrical Termination | 3 meter cable (IP67) |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 20 Business Days |
| Warranty | 1 Year |
