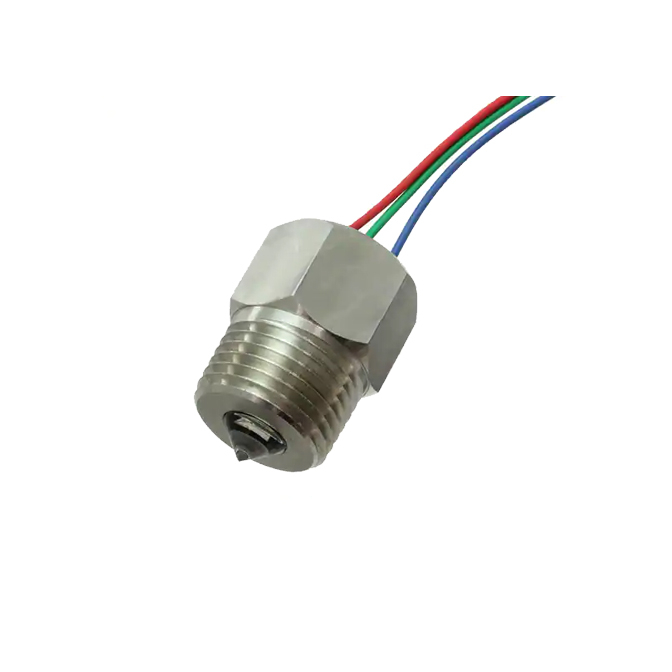

OPT5000-P1 Optical Level Sensor
Heavy-duty optical sensor with wet logic, stainless steel build, and 5000 psi / 257 °F rating.
316 Stainless Steel construction
½″ NPT optical mounting
High-pressure rating (5000 PSI)
- Buy 10 for $343.90 each and save 5%
- Buy 25 for $325.80 each and save 10%
- Buy 100 for $307.70 each and save 15%
The OPT5000-P1 Optical Level Sensor delivers unmatched reliability in extreme environments, featuring a 316 stainless steel body, ½″ NPT mounting, and wet optical sensing with a current-sink output. Rated for up to 5000 psi and 257 °F (125 °C), it is ideal for demanding industrial or high-pressure fluid applications. Built to IP67 standards with a 3 m cable termination, it carries CE certification and a one-year warranty. MadisonSensor recommends requesting a quote to verify pricing and specifications, and offers custom-engineered solutions to meet your application needs.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | 1/2" NPT |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Current Sink Wet |
| Electrical Ratings | Iout max = 800mA |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 345 |
| Maximum Pressure (PSI) | 5000 |
| Electrical Termination | 3 meter cable (IP67) |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 20 Business Days |
| Warranty | 1 Year |
