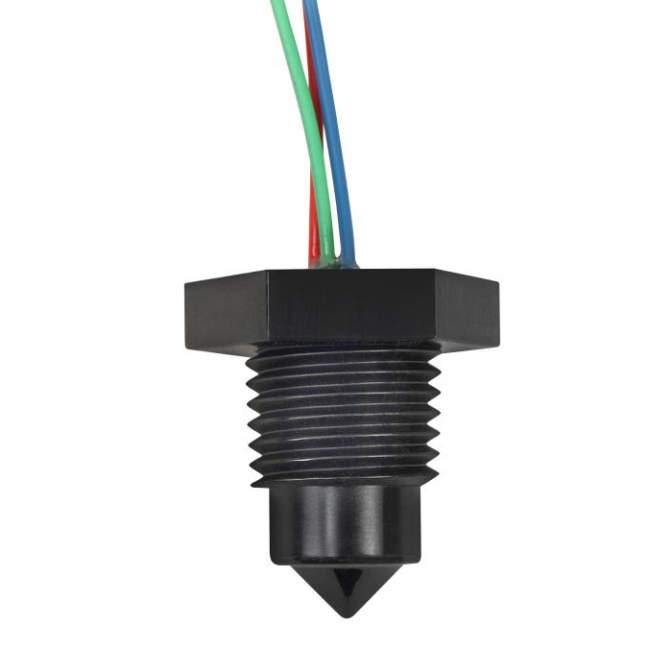

OPT4710-P2 Optical Sensor
Durable optical sensor with dry current-sink logic, rated for 257 °F and 100 psi.
Compact ¼″ NPT optical housing
Dry current-sink sensing logic
Withstands 257 °F and 100 psi
The OPT4710-P2 Optical Sensor provides reliable single-point detection using dry optical, current-sink sensing in a compact ¼″ NPT configuration. Designed for flexibility, it supports both horizontal and vertical installation and performs across demanding conditions—up to 257 °F (125 °C) and 100 psi (7 BAR). CE-certified and backed by a one-year warranty, this sensor is available within approximately 15 business days. MadisonSensor recommends requesting a quote to verify pricing and specifications and offers custom-engineered solutions tailored to your application specifics.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | 1/4" NPT |
| Switch Logic | Current Sink Dry |
| Electrical Ratings | 100mA Iout Max |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 15 Business Days |
| Warranty | 1 Year |
