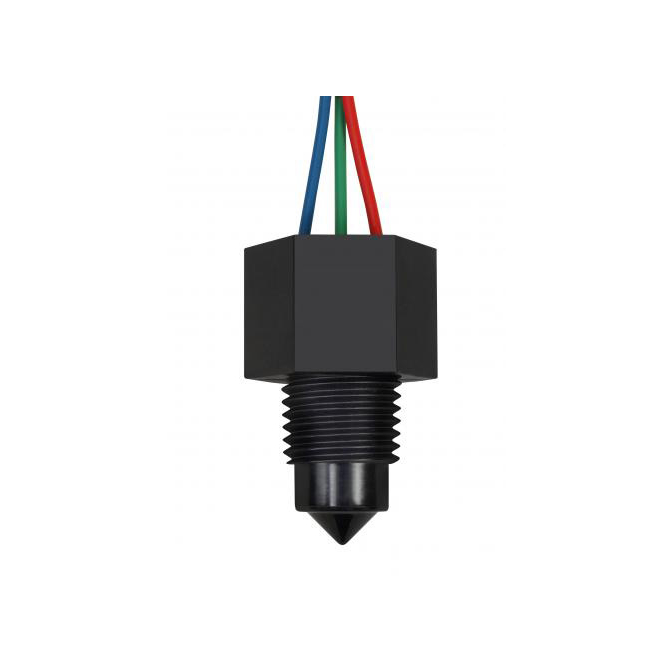

OPT4710-24P2 Optical Sensor
$129.00
SKU:
OPT4710-24P2
Lead Time20 Business Days
Rugged optical sensor with dry current-sink logic, rated for 257 °F and 209 psi.
Compact optical ¼″ NPT mount
Current-sink, dry sensing logic
High-pressure and temperature resilience
The OPT4710-24P2 Optical Sensor provides precise single-point level detection using dry current-sink optical sensing in a compact ¼″ NPT package. Designed for versatility, it supports both horizontal and vertical installation and performs reliably in environments up to 257 °F (125 °C) and 209 psi. CE-certified and backed by a one-year warranty, this sensor is available with a 20-business-day lead time. MadisonSensor recommends requesting a quote to confirm pricing and specifications, and can accommodate custom-engineered solutions tailored to your application.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | 1/4" NPT |
| Switch Logic | Current Sink Dry |
| Electrical Ratings | Iout Max = 100mA |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 209 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 20 Business Days |
| Warranty | 1 Year |
