OPT4210-P2 Optical Sensor
$129.00
SKU:
OPT4210-P2
Lead Time55 Business Days
Compact optical sensor with current-sink logic and high-temperature capability up to 257 °F.
Compact M12×1 optical housing
Current-sink, dry sensing logic
High-temperature rating up to 257 °F
- Buy 25 for $116.10 each and save 10%
- Buy 50 for $96.75 each and save 25%

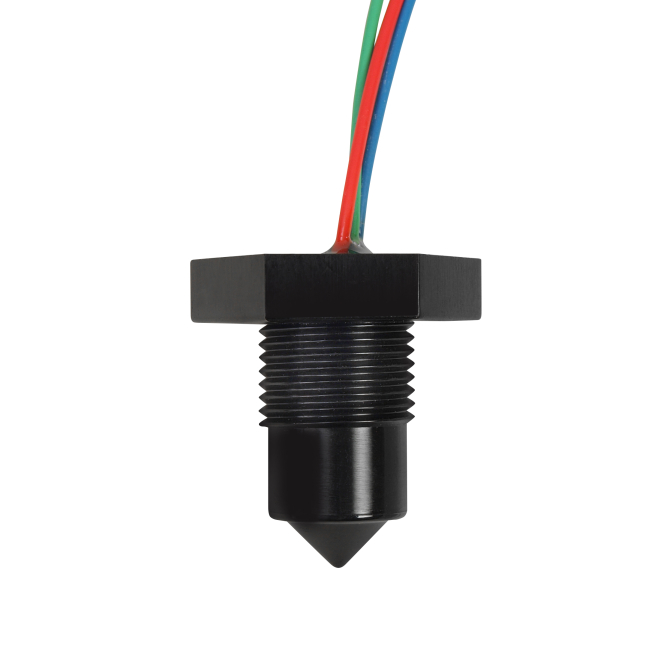

The OPT4210-P2 Optical Sensor provides clean, dry liquid detection using reliable current-sink optical sensing. Packaged in a compact M12×1 form factor with PTFE-insulated leads, it operates over a wide temperature range up to 257 °F (125 °C) and pressures up to 100 psi. CE-certified and backed by a one-year warranty, this sensor ships with a lead time of approximately 55 business days. MadisonSensor recommends requesting a quote to confirm pricing and specifications, and offers custom solutions tailored to your application.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | M12x1 |
| Switch Logic | Current Sink Dry |
| Electrical Ratings | 100mA Iout Max |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 55 Business Days |
| Warranty | 1 Year |
