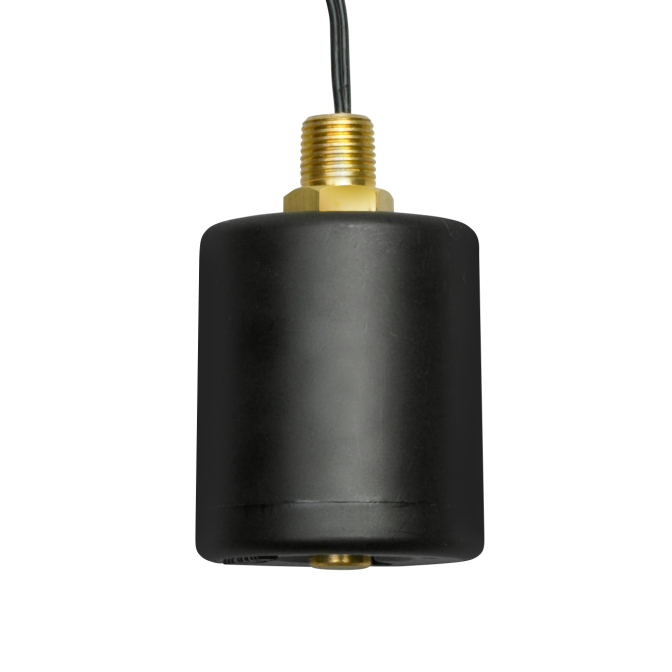

MS4500 Miniature Float Switch with Slosh Shield
Miniature brass and Buna-N float switch with slosh shield for dependable level detection in agitated fluids.
High-purity Buna-N float with brass stem
Compact 1/8″ NPT vertical mounting
Slosh-shielded 30 W SPST switch
The MS4500 Miniature Float Switch with Slosh Shield delivers compact, reliable level sensing with enhanced turbulence protection thanks to its built-in slosh shield. Crafted from a brass stem and Buna-N float, this vertical-mounted switch operates accurately up to 221 °F and 150 psi—ideal for applications involving aromatic hydrocarbons, diluted acids, or petroleum fluids where agitation or surging is present. Its approvals (CE, CSA, cULus) and one-year warranty underscore its quality and dependability. MadisonSensor prefers quote requests to confirm price and specifications and offers tailored, custom-engineered solutions for unique application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 24 AWG, Teflon insulated |
| Slosh Shield | Yes |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
