MD4814-110-00 Digital Panel Meter
Versatile 1/8 DIN panel meter with multi-input support and rugged, configurable interface.
Accepts current, voltage, thermocouple, RTD inputs
Rugged 1/8 DIN meter with NEMA 4X/IP65 front
Programmable with relays, Modbus, and copy-settings

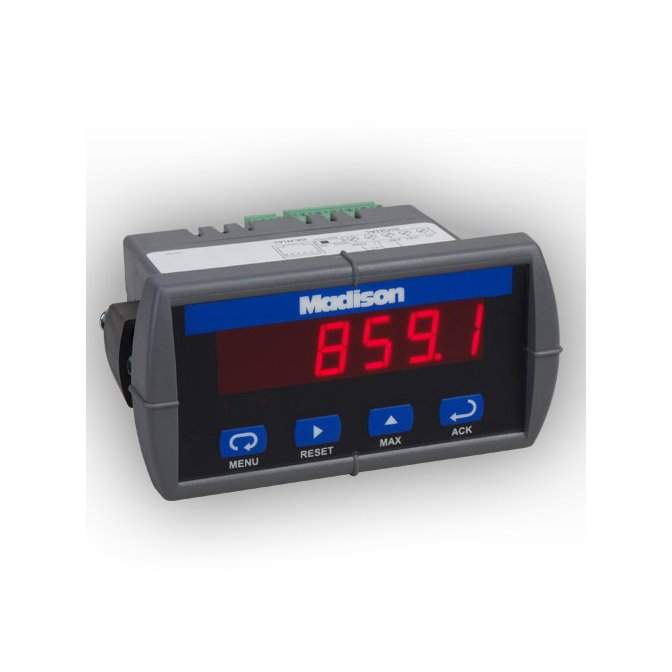

The MD4814-110-00 Digital Panel Meter is a versatile, industrial-grade display solution with a NEMA 4X-rated front panel and a 0.56″ LED display. It supports a variety of input types including 4–20 mA, voltage, RTDs, and thermocouples, making it ideal for monitoring temperature, process flow, or level. Powered by either 85–265 VAC/VDC or 12–36 VDC, it includes soft keys, optional relays, Modbus RTU communication, and configuration via Madison’s free MeterView software. With fast 1-day lead time, CE and UL approvals, and rugged housing, it’s a dependable choice for function and efficiency.
| Switch Logic | Normally Closed |
|---|---|
| Slosh Shield | No |
| Approvals | CE, cULus E54633, UL E150881 (Hazloc) |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
