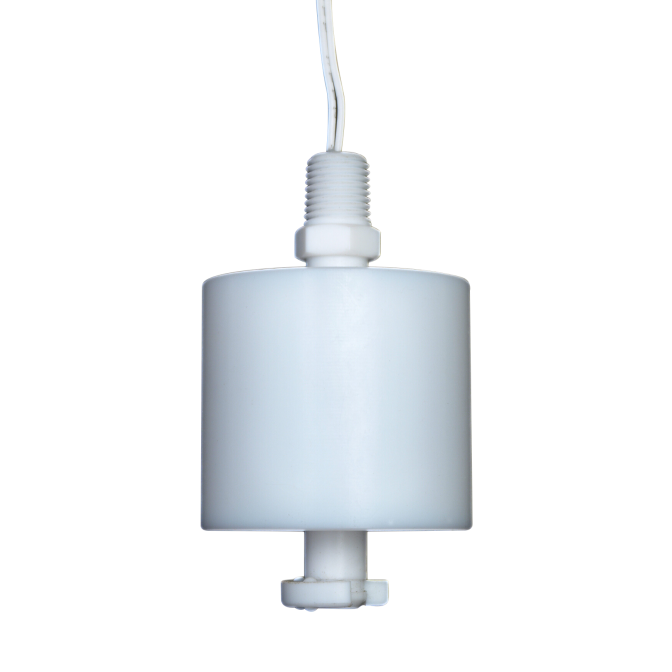

M9500-SPDT Float Switch (SPDT Switch)
Flexible Teflon float switch with configurable SPDT logic for reliable level control.
Chemically resistant Teflon construction
Compact ¼″ NPT vertical mounting
Field-selectable 25 W SPDT switch
The M9500-SPDT Float Switch offers versatile single-point level control with Teflon stem and float for outstanding chemical resistance. Its field-selectable SPDT functionality, handling both normally open and closed configurations, ensures flexibility in application. Rated for up to 300 °F and 40 psi, this switch delivers precise performance even in corrosive or sticky fluid environments. With a 1-year warranty and CE approval, this durable sensor is trusted across demanding industrial settings. MadisonSensor prefers quote requests to confirm pricing and specifications and offers custom solutions to suit your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Teflon |
| Stem Material | Teflon |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 25 WATT SPDT |
| Electrical Ratings | 120V AC, 0.28A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 150 |
| Temperature (Max-Fahrenheit) | 300 |
| Maximum Pressure (BAR) | 3 |
| Maximum Pressure (PSI) | 40 |
| Minimum Media SG | 0.79 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
