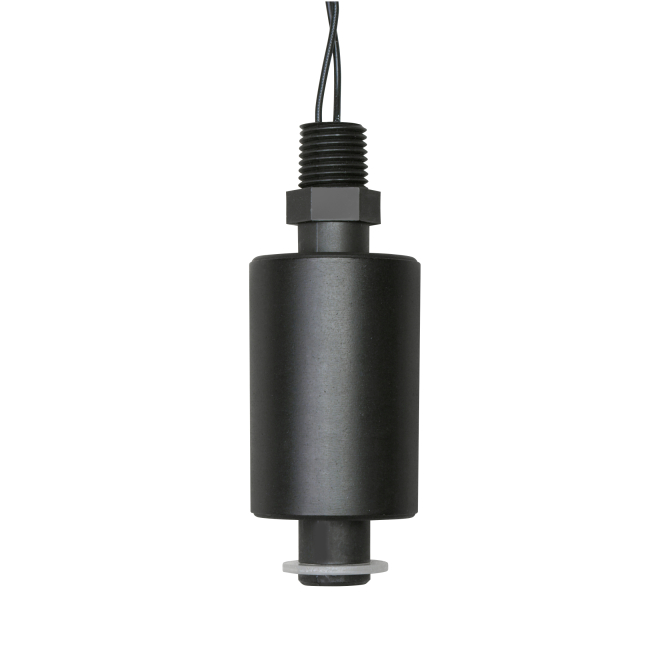

M7800 Single Point Level Switch
$43.00
SKU:
M7800
Lead Time1 Business Day
Heavy-duty PBT float switch (NC SPST), rated to 221 °F/150 PSI, with fast availability.
Buna‑N float with PBT stem
Durable 60 W SPST switch (NC logic)
High-temperature support—221 °F / 105 °C
The M7800 Single Point Level Switch delivers dependable liquid level monitoring with its robust PBT stem and Buna‑N float construction. Engineered for single-point control in tanks or reservoirs, it features normally-closed SPST logic for reliable fail-safe operation and supports temperatures up to 221 °F and pressures up to 150 PSI. With comprehensive certifications including CE, CSA, UL, and Proposition 65 compliance, and available with a fast 1-day lead time, it embodies performance, safety, and speed. MadisonSensor recommends requesting a quote to confirm current pricing and specifications and is ready to tailor custom solutions to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Buna-N |
| Stem Material | PBT |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.25" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, Prop 65 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
