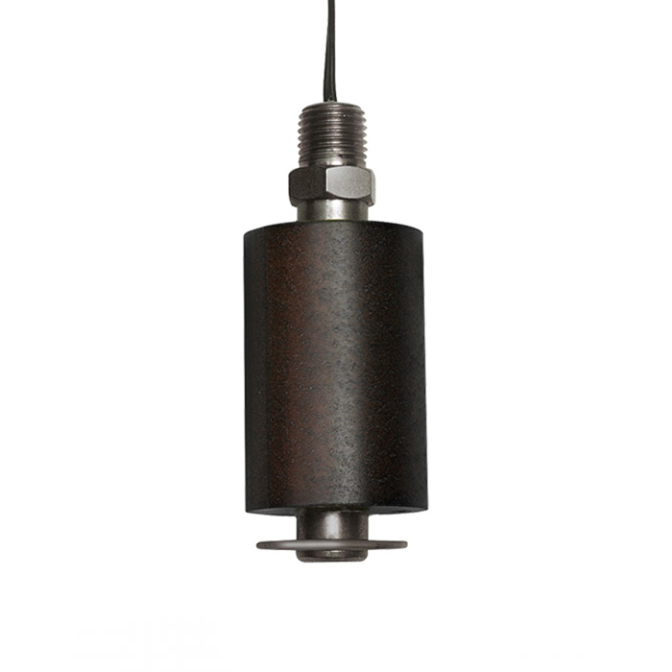

M4600 Single Point Level Switch
Durable vertical float switch offering reliable high/low level monitoring.
316‑SS stem for corrosion resistance
High-capacity 60 W SPST testing capability
Compact ¼″ NPT vertical installation
- Buy 10 for $93.10 each and save 5%
- Buy 25 for $88.20 each and save 10%
- Buy 100 for $83.30 each and save 15%
The M4600 Single Point Level Switch features a robust 316 stainless steel stem and a Buna‑N float, designed for dependable vertical level control in petroleum, oil, and water applications. It delivers 60 W SPST switching at tolerances up to 150 PSI and 221 °F, ideal for tank high/low control. With CE, UL, and CSA approvals, alongside a one‑day lead time and one‑million‑cycle reed switch reliability, it offers industrial-grade performance with quick deployment. MadisonSensor prefers quote requests for price or specification confirmation and provides custom-engineered solutions to fit your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Buna-N |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.45 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.25" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
