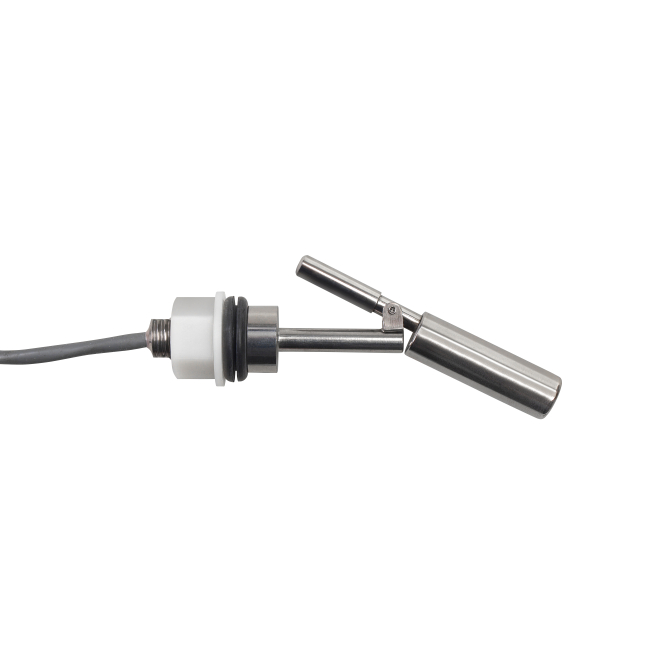

M4003 Side Mount Float Switch
$201.00
SKU:
M4003
Lead Time5 Business Days
Durable 316 SS side-mount float switch with flexible logic options for versatile level detection.
- 316 SS for robust corrosion resistance
Side-mount design enables flexible placement
Selectable NO or NC logic for versatile use
The M4003 Side Mount Float Switch offers dependable, horizontal liquid level monitoring in industrial settings such as HVAC systems, chemical vessels, and fluid containers where side mounting is essential. Built entirely of 316 stainless steel and compliant with CE standards, it ensures reliable performance under moderate pressure. MadisonSensor recommends requesting a quote to confirm price and exact specifications, and can deliver custom-engineered solutions tailored to your unique application.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 5/8-11 UNC |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 2 |
| Maximum Pressure (PSI) | 30 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 79”, 22 AWG, 2 conductor, PVC jacketed cable |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
