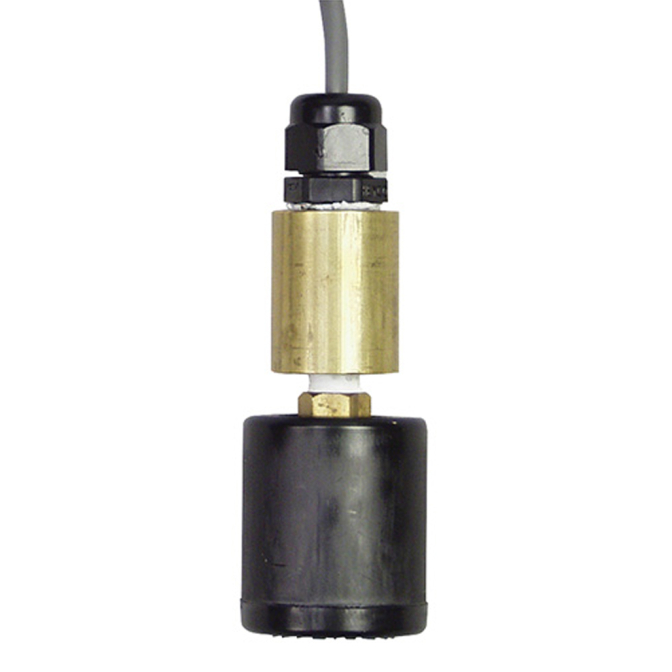

M3782 Single Point Level Switch
$156.00
SKU:
M3782
Lead Time1 Business Day
Durable, slosh-shielded suspendable float switch for flexible industrial level monitoring.
- Suspendable cable for flexible placement
- Durable brass & Buna-N construction
- Slosh-shielded, normally-closed float switch
- Buy 10 for $148.20 each and save 5%
- Buy 25 for $140.40 each and save 10%
- Buy 100 for $132.60 each and save 15%
The M3782 Single Point Level Switch is engineered for flexible, reliable liquid level detection in industrial applications such as sumps, dispenser pans, and leak detection within double-wall tanks. Its brass stem, Buna-N float, and slosh shield ensure durable performance in challenging environments, backed by CE and Prop 65 certifications. MadisonSensor recommends requesting a quote to confirm pricing and specifications, and offers tailored, custom-engineered solutions for unique applications.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | Suspendable Cable |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 4 |
| Maximum Pressure (PSI) | 50 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 240”, 22 AWG, 2 conductor, Halar jacketed cable |
| Float Diameter | 1" |
| Slosh Shield | Yes |
| Approvals | CE, Prop 65 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
