ML5555-LVL4, 4th Level for ML5555, Blue Leads
Add a 4th float level to your ML5555 system with this rugged stainless kit—configurable logic, high-temp/pressure rated, and in stock.
Adds a fourth stainless steel float level to the ML5555 multi-point system
60 W SPST switch, configurable logic (NO/NC) for control flexibility
Built for extreme conditions—392 °F and 200 PSI

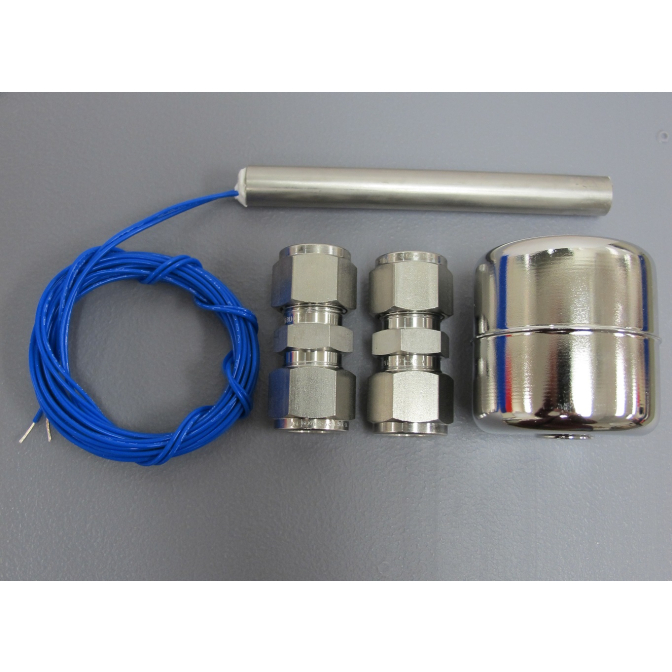

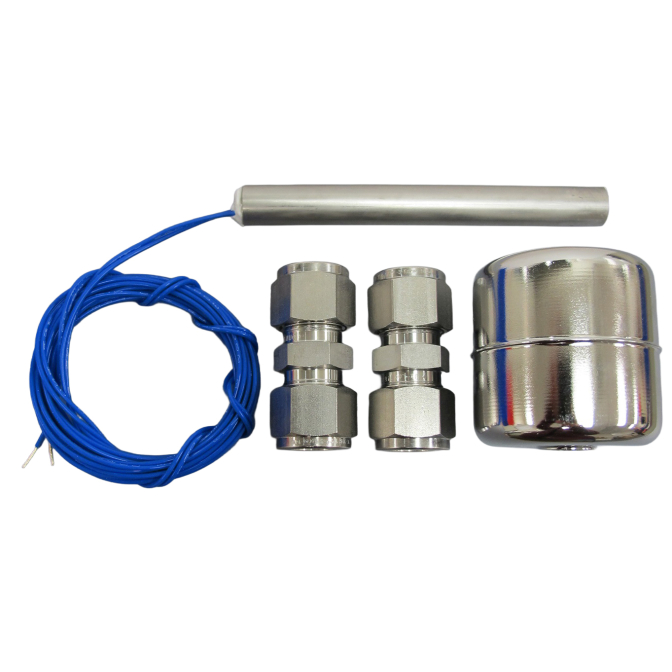

ML5555-LVL4 enables seamless expansion of your ML5555 multi-point switch system by adding a fourth float level using a robust 316 stainless steel float and stem assembly. The switch is a 60 W SPST model that you can configure as either normally open or closed to integrate into your control setup. Built for high-temperature and high-pressure applications, it operates up to 392 °F (200 °C) and 200 PSI, and is compatible with fluids with a specific gravity of 0.63 or higher. Pre-wired with blue Teflon-insulated leads for hassle-free installation, this kit is CE-certified and comes with a 1-year warranty. Stocked for fast shipping, MadisonSensor recommends requesting a quote for up-to-date pricing and specification details, and is available to customizeably accommodate OEM needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
