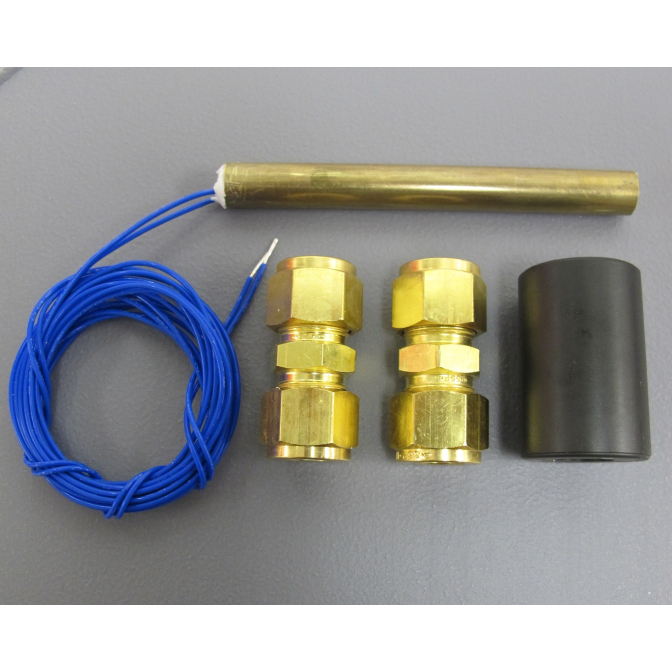

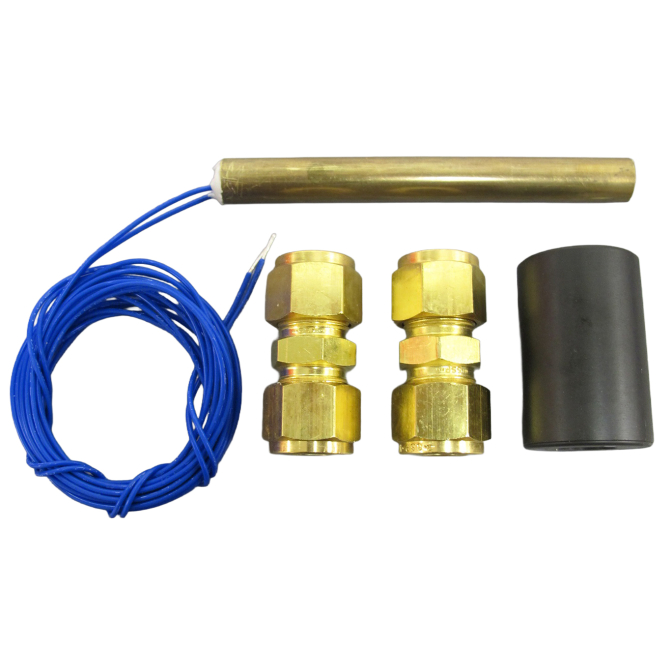

ML4444-LVL4, 4th Level for ML4444, Blue Leads
Adds a fourth float level via Buna-N sensor with brass stem
60 W SPST logic with selectable Normally Open or Closed
Rated for demanding conditions: 221 °F, 150 PSI—ready to ship next da
- Buy 10 for $199.50 each and save 5%
- Buy 25 for $189.00 each and save 10%
- Buy 100 for $178.50 each and save 15%
The ML4444-LVL4 kit enables the addition of a fourth float level to your ML4444 multi-point switch system, using a Buna-N float and brass stem for durability. Enabled with a 60 W SPST switch, field-adjustable between normally open or closed logic, it ensures flexible control options. Fully equipped for challenging environments, the switch handles temperatures up to 221 °F (105 °C), pressures up to 150 PSI, and requires fluids with a minimum specific gravity of 0.56. Pre-wired with PTFE-insulated blue leads for simplified wiring, this accessory is CE-certified and ships within one day. MadisonSensor recommends requesting a quote to verify specifications and pricing and is available to support custom configurations tailored to your system’s needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 1.25" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
