ML5555-LVL3, 3rd Level for ML5555, White Leads
316 SS add-on float for ML5555 kits—configurable logic, rated 392 °F/200 PSI, in stock.
Full-size 316 SS addition for ML5555 multi-point kits
Swap between Normally Open or Closed logic—60 W SPST switch
Engineered for extreme conditions: 392 °F / 200 PSI
- Buy 10 for $323.95 each and save 5%
- Buy 25 for $306.90 each and save 10%
- Buy 100 for $289.85 each and save 15%

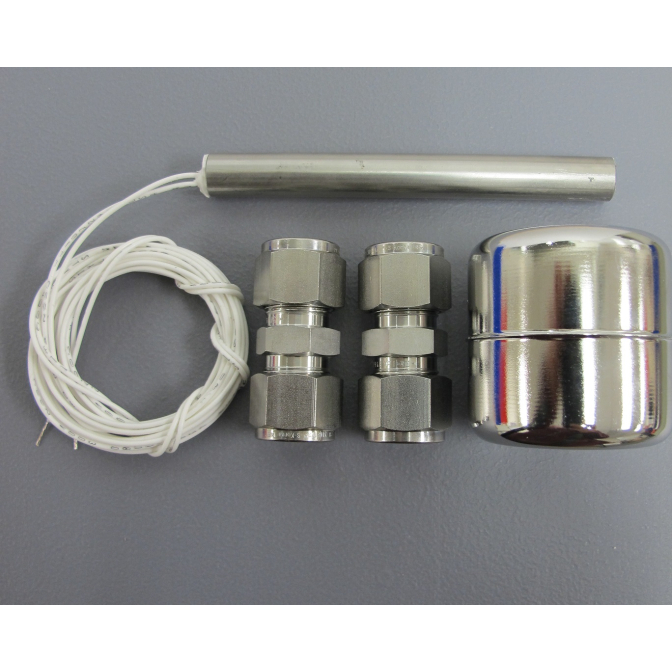

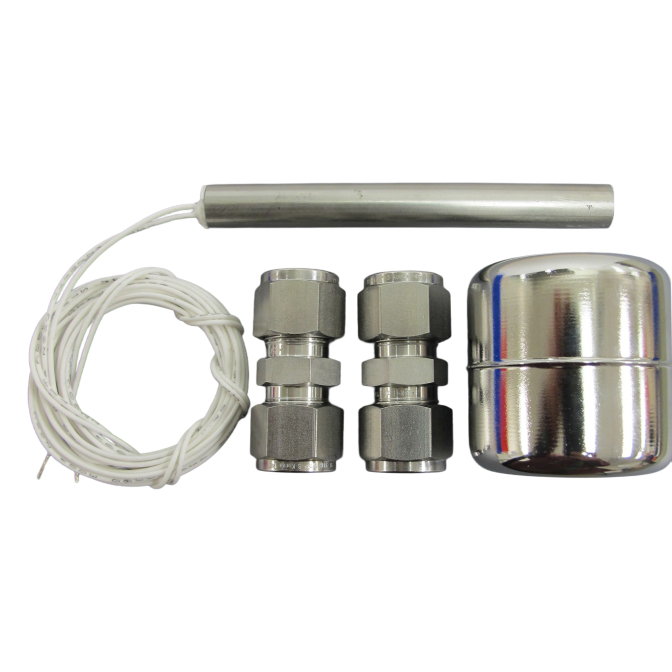

Add flexibility to your existing ML5555 setup with the ML5555-LVL3, a field-installable accessory. This ready-made float sensor combines a robust 316 stainless-steel stem and float with a 60 W SPST switch you can configure as Normally Open or Closed. Designed to operate under challenging conditions—including temperatures up to 392 °F (200 °C) and pressures up to 200 PSI—this accessory provides reliable performance in demanding environments like petrochemical processing and food systems. It ships quickly with one-day availability and includes a one-year warranty. For precise specs or OEM-grade customization, MadisonSensor encourages quote requests.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
