ML4444-LVL3, 3rd Level for ML4444, White Leads
Add a third level to your ML4444 kit with this full-size Buna-N float switch, NC logic, 221 °F/150 PSI rated.
Full-size Buna-N float kit for ML4444, adds 3rd level
Normally closed 60 W SPST logic, pre-wired with white PTFE leads
Compatible with harsh liquids up to 221 °F and 150 PSI

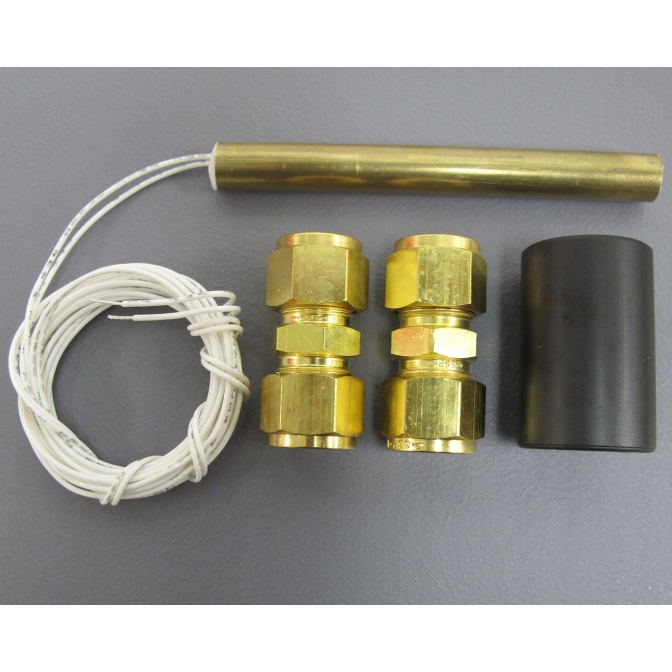

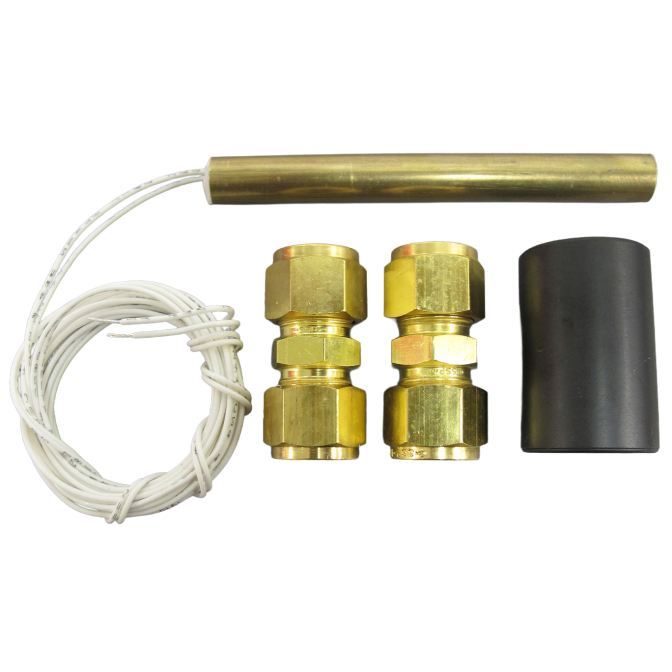

The ML4444-LVL3 kit allows you to extend your existing ML4444 multi-point level switch to include a third detection point, using a full-size Buna-N float. It features a durable brass stem assembly and a 60 W SPST switch in a normally-closed configuration, pre-wired with 72″ PTFE-insulated white leads for seamless integration. Engineered to withstand up to 221 °F (105 °C) and 150 PSI, and designed for use with fluids of at least 0.45 specific gravity, it’s ideal for reliable control in fuel, chemical, or water-based systems. MadisonSensor stocks this kit for 1-day delivery and encourages requesting a quote to confirm specifications and explore custom solution options.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 1.25" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
