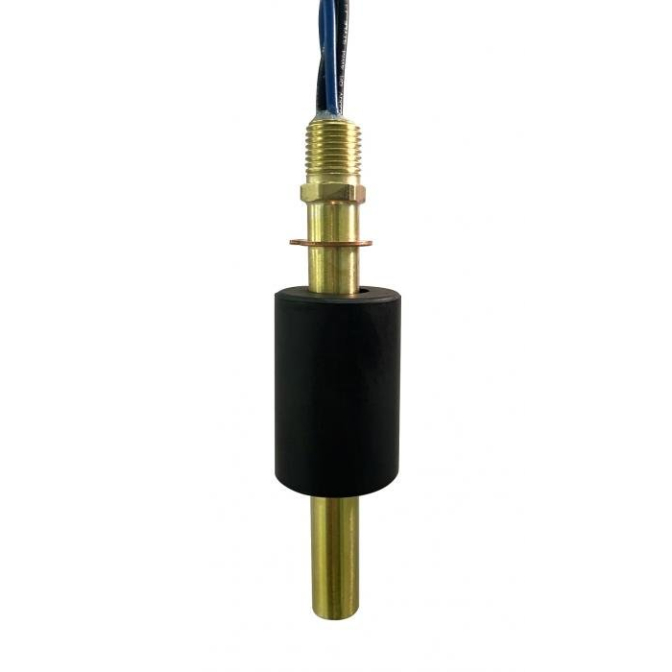

MT4302-13661-070-NO Temperature & Float Switch (Normally Open)
Brass-stem float switch with Buna-N float and normally open logic for precision level detection.
Brass stem with Buna-N float
¼" NPT vertical mounting
60 W SPST switch, normally open
The MT4302 Temperature & Float Switch (Normally Open) features a durable brass stem and Buna-N float for reliable vertical level sensing. With a 60 W SPST switching mechanism and normally open logic, it is suitable for applications up to 221 °F (105 °C) and 150 psi. Certified with CE and Prop 65 approvals and backed by a one-year warranty, this switch is available with a lead time of approximately 10 business days. MadisonSensor prefers quote requests for accurate pricing and specifications and offers custom-engineered solutions for unique application requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Open |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 18 AWG Teflon Insulated |
| Float Diameter | 1.25" |
| Slosh Shield | No |
| Approvals | CE, Prop 65 |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
