FS1000 Series Paddle-Type Flow Switch
$365.00
SKU:
FS1000
Lead Time30 Business Days
Versatile stainless-steel paddle switch offering adjustable SPDT control and trusted industrial reliability.
Field-trimmed paddle adapts easily
Durable stainless-steel construction
Reliable SPDT switch for control

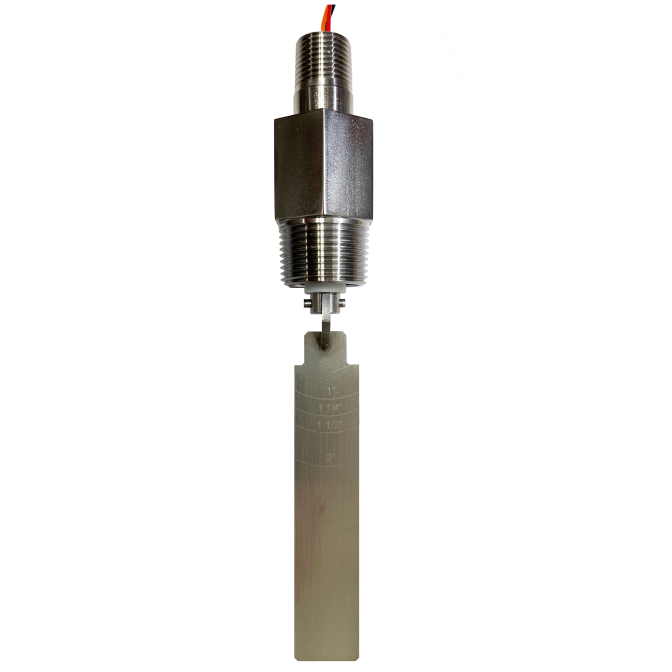

The FS1000 Series Paddle-Type Flow Switch is engineered for industrial applications requiring dependable flow detection across 4–38 GPM range. Featuring a field-trimmable paddle and SPDT switching, it delivers adjustable versatility and minimal pressure drop. Trusted materials like stainless steel, ceramic, and PTFE ensure long service life, and CE approval underscores its quality. MadisonSensor prefers quote requests for pricing and spec validation and can tailor custom solutions to fit your system needs.
| Orientation | Vertical |
|---|---|
| Housing Material | 304 Stainless Steel |
| Mounting Type & Size | 1" NPT |
| Flow Setting (GPM) | 4.00 - 38.00 |
| Set Point Accuracy | +/- 25% |
| Switch Rating | 60 WATT SPDT |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 900 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE |
| Lead Time | 30 Business Days |
| Warranty | 1 Year |
