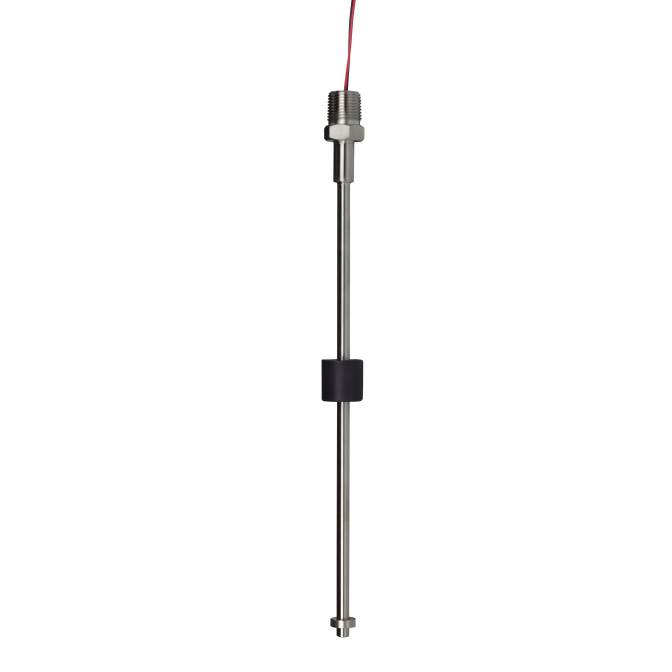

C4954-13456 Continuous Float Level Sensor (10.5" OAL)
Compact continuous float level sensor with 4–20 mA output and ¼" resolution, Buna-N float and 316 SS stem, rated to 221 °F/150 PSI.
Buna-N float with 316 SS stem—durable and compact
Accurate 4–20 mA output at ¼" resolution for precise level measurement
Rugged 1½" NPT mounting rated to 221 °F and approximately 150 PSI
The C4954-13456 Continuous Float Level Sensor delivers accurate and continuous liquid level measurement through a rugged Buna-N float traveling along a 316 stainless-steel stem. It outputs a linear 4–20 mA signal with ¼" resolution across a 9.5" sensing range—ideal for integration into PLCs or control systems. Built to operate in challenging environments, it withstands temperatures from –40 °F to 221 °F and pressures up to approximately 150 PSI, with reliable performance in media down to a specific gravity of 0.56. Constructed with high-quality materials and CE-certified, this sensor is tailored for industrial, fuel, and OEM tank monitoring needs. Request a quote to verify current specifications and explore custom configuration options.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 1-1/2" NPT |
| Resolution | 1/4" |
| Float Material | Buna-N |
| Stem Material | 316 Stainless Steel |
| Input Voltage | 12-30V DC |
| Electrical Ratings | 4-20mA |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Output (Linear) | 4-20mA |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Approvals | CE |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
