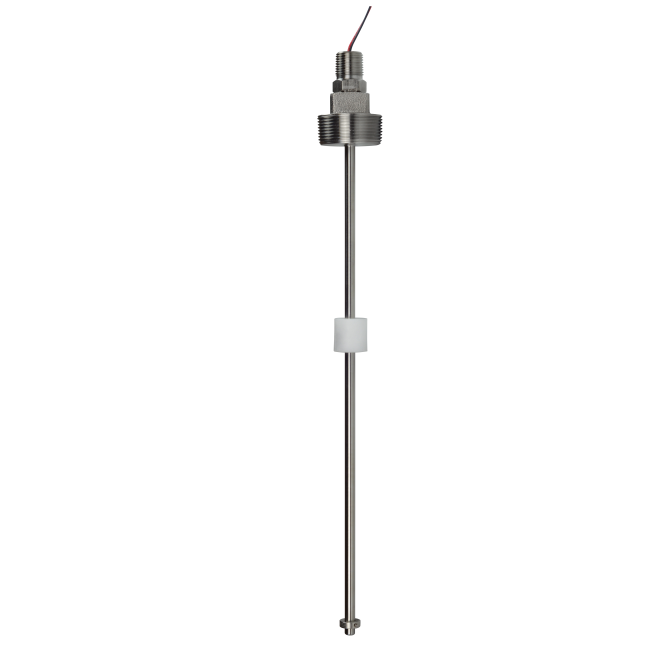

C4954-13455 Continuous Float Level Sensor (14" OAL)
Durable polypropylene float with 316 SS stem construction
Precise resistive output (100 Ω per ¼″ step) ideal for level tracking
Compact 1½″ NPT design, rated for 221 °F and 100 PSI
The C4954-13455 Continuous Float Level Sensor offers reliable, continuous level monitoring via a polypropylene float that travels along a precise 316 stainless-steel guide stem. It delivers a resistive output—approximately 100 Ω for every ¼″ of movement—making it well-suited for real-time level sensing in compact tanks. Designed to thrive under tough conditions, it operates up to 221 °F (105 °C) and withstands pressures up to 100 PSI, with a consistent response down to a specific gravity of 1. The probe mounts securely via a 1½″ NPT connection and features Teflon-insulated wiring. With a 10 business-day lead time, MadisonSensor invites you to request a quote to verify specifications and explore custom options for OEM requirements.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 1-1/2" NPT |
| Resolution | 1/4" |
| Float Material | Polypropylene |
| Stem Material | 316 Stainless Steel |
| Input Voltage | 12-30V DC |
| Electrical Ratings | Resistive - 100 Ohms per 1/4” Step - 1/10 watt |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 1.00 |
| Output (Linear) | Resistive - 100 Ohms per 1/4” Step - 1/10 watt |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Approvals | CE |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
