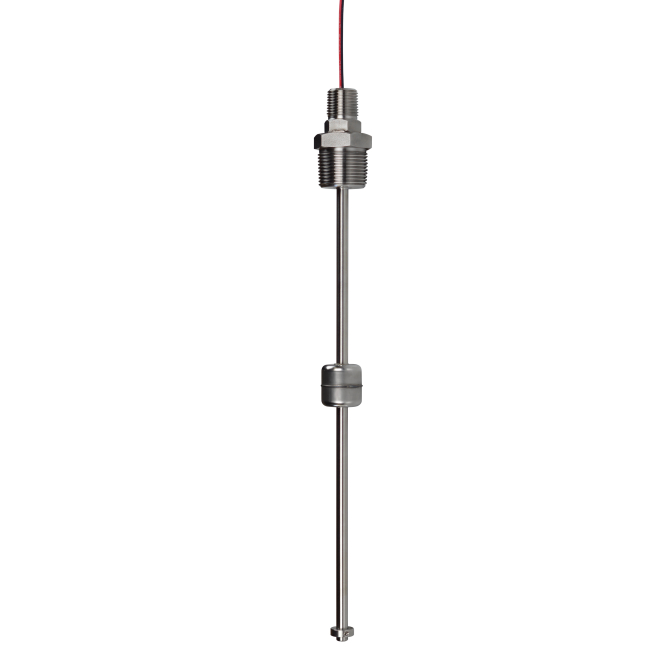

C4954-13454 Continuous Float Level Sensor (11.5" OAL)
High-precision 316 SS continuous float level sensor with 4–20 mA output and ¼″ resolution, rated 200 PSI/221 °F.
Robust 316 stainless-steel float and stem ensure durability
Precise 4–20 mA analog output with ¼″ resolution for accurate level monitoring
High-pressure capability (up to 200 PSI) in a compact 11.5″ body.
The C4954-13454 Continuous Float Level Sensor delivers accurate, real-time liquid level monitoring through its stainless-steel float traveling along a 316 stainless-steel guide tube. Offering 10.5″ of active sensing length within a 12″ probe, it outputs an accurate 4–20 mA signal in ¼″ increments—ideal for integration with PLCs and panels. Designed to thrive in rigorous environments, it operates from –40 °F to 221 °F and handles pressures up to 200 PSI, with a minimum specific gravity of 0.88. Pre-wired with durable Teflon lead wires and housed in a rigid 1″ NPT assembly, it’s built for reliability. Currently in stock, with a 10-day lead time, this sensor is an excellent fit for industrial, chemical, or OEM liquid level applications. To ensure the correct specifications and pricing, MadisonSensor recommends requesting a quote and can provide custom solutions on demand.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 1" NPT |
| Resolution | 1/4" |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Input Voltage | 12-30V DC |
| Electrical Ratings | 4-20mA |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.88 |
| Output (Linear) | 4-20mA |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Float Diameter | 1.13" |
| Approvals | CE |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
