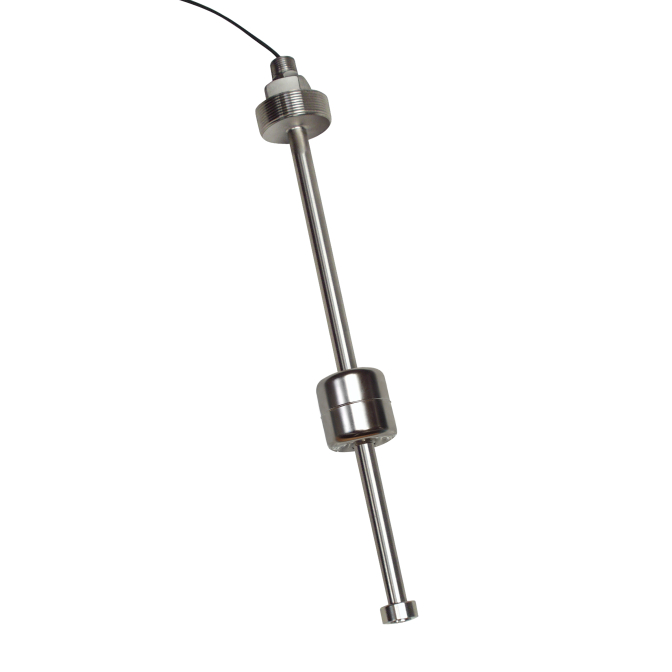

C4651-12803 Continuous Float Level Sensor (22.63" OAL)
316 SS continuous float level sensor with 4–20 mA output and ¼″ resolution, high-temp/pressure rated—available next business day.
Robust 316 stainless-steel float and stem construction
Continuous 4–20 mA output with precise ¼″ resolution
Built for demanding use—rated 221 °F / 200 PSI, with fast delivery
The C4651-12803 Continuous Float Level Sensor offers reliable, high-precision real-time liquid level measurement using a stainless-steel float on a 316 stainless-steel stem. Designed with ¼″ resolution and a 4–20 mA output, it ensures seamless integration with PLCs and panel meters. Engineered to endure harsh conditions, it operates from –40 °F to 221 °F and can withstand pressures up to 200 PSI. With CE, UL, and NSF certifications backing its performance, and stocked for 1-day delivery with a 1-year warranty, this sensor is ideal for industrial storage, processing, or remote tank monitoring applications. MadisonSensor recommends requesting a quote for tailored specifications or custom OEM configurations.
| Sensor Type | Float |
|---|---|
| Mounting Type & Size | 2" NPT |
| Resolution | 1/4" |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Input Voltage | 12-30V DC |
| Electrical Ratings | 4-20mA |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Temperature (Min-Celsius) | -40 |
| Temperature (Min-Fahrenheit) | -40 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Output (Linear) | 4-20mA |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Approvals | CE, cULus E54633, NSF/ANSI 169 |
| Lead Time | 30 Business Days |
| Warranty | 1 Year |
